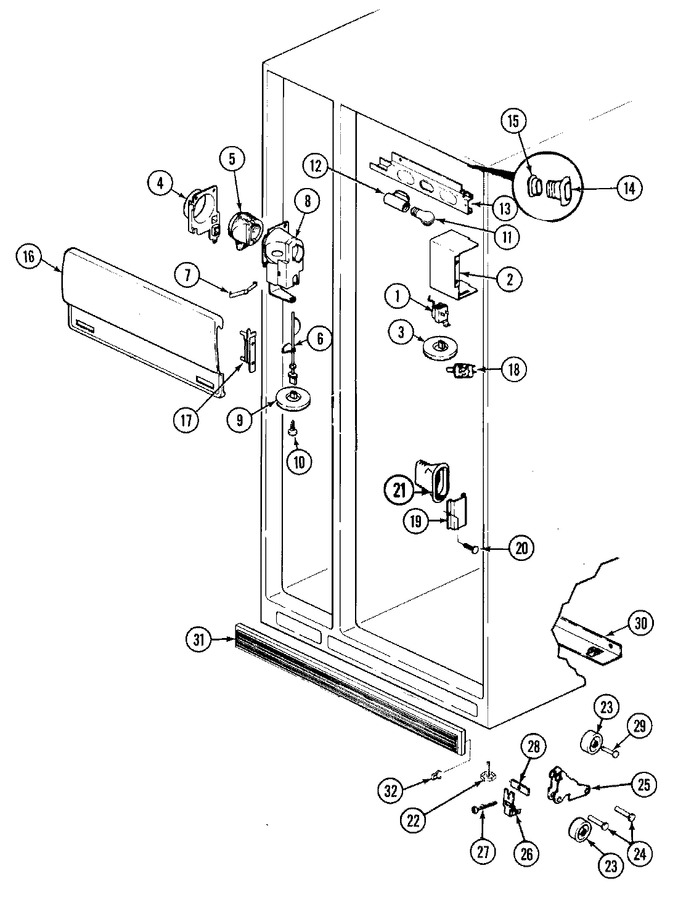

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67692-1 | Insulation, Control |
|
- | |||||
| 1 | 401012-1 | Screw, Control Mounting |
|
- | |||||
| 1 | WP61001673 | Control, Temperature (Replaces: 69694-3) |
|
Immediately | $ 144.29 | ||||
| 2 | 67126-1 | Housing, Temperature Control |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 3 | 29893-7 | Knob, Temp. Control |
|
- | |||||
| 4 | 67351-1 | Orifice, Frz. Control (inlet) |
|
- | |||||
| 5 | 58767-1 | Insulation, Housing |
|
- | |||||
| 6 | 68613-1 | Baffle |
|
- | |||||
| 7 | 52648-1 | Spring, Baffle |
|
- | |||||
| 8 | 67354-1 | Housing, Frz. Control |
|
- | |||||
| 8 | 400027-1 | Screw |
|
- | |||||
| 9 | 67145-4 | Knob, Freezer Control |
|
- | |||||
| 10 | 400001-1 | Screw |
|
- | |||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) |
|
Immediately | $ 10.58 | ||||
| 12 | 68974-3 | Receptacle, Bulb |
|
- | |||||
| 13 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 13 | 69081-2 | Housing |
|
- | |||||
| 14 | 57410-1 | Tunnel |
|
- | |||||
| 15 | 57411-1 | Retainer |
|
- | |||||
| 16 | 69194-2 | Shield, Light Ref |
|
- | |||||
| 17 | 67125-1 | Support, Light Shield |
|
- | |||||
| 17 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 17 | 69836-1 | Insert, Light Shield |
|
- | |||||
| 18 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 19 | 69982-1 | Cover, Air Return |
|
- | |||||
| 20 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 21 | 67684-1 | Tunnel, Air Return |
|
- | |||||
| 22 | W11117769 | Leg, Leveling (Replaces: 68664-2) |
|
Immediately | $ 16.61 | ||||
| 22 | 69810-1 | Cap, Leveling Leg |
|
- | |||||
| 23 | 29834-2 | Wheel |
|
- | |||||
| 24 | 64965-1 | Pin, Wheel |
|
- | |||||
| 25 | 62794-1 | Bracket, Wheel |
|
- | |||||
| 25 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 26 | 62795-1 | Faceplate Bracket |
|
- | |||||
| 27 | 56487-2 | Screw, Wheel Adjustment |
|
- | |||||
| 28 | 59101-1 | Tapping Plate, Wheel |
|
- | |||||
| 29 | 64965-3 | Pin, Wheel (rear) |
|
- | |||||
| 30 | 67255-2 | Support Rail Rear |
|
- | |||||
| 30 | 3400518 | Screw (Replaces: 65275-42) |
|
$ 11.68 | |||||
| 31 | 68981-8 | Kickplate (wht) |
|
- | |||||
| 32 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 32 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 |
