SELECT A DIAGRAM
New Model Search:

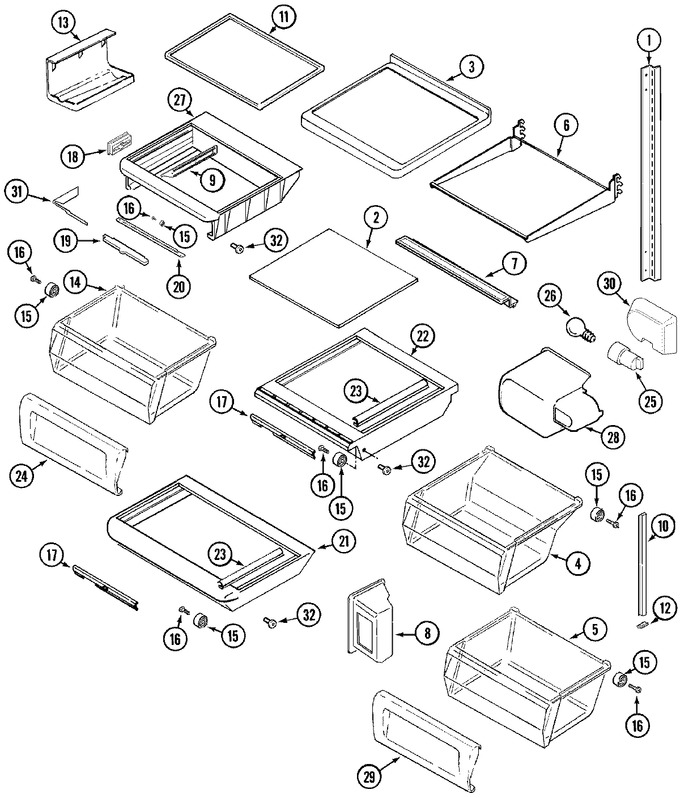

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 1 | 61003577 | Rail, Shelf Support | 11 |
|
- | ||||
| 2 | 61003664 | Glass, Crisper Shelf (lwr) | 11 |
|
- | ||||
| 2 | 61003662 | Glass, Crisper Shelf (upr)-na | 11 |
|
- | ||||
| 3 | 61003801 | Shelf, Slide Out (spillproof) | 11 |
|
- | ||||
| 4 | 61003667 | Pan, Crisper (upr) | 11 |
|
- | ||||
| 5 | 61003668 | Pan, Crisper (lwr) | 11 |
|
- | ||||
| 6 | 61003736 | Frame, Slide Out Shelf | 11 |
|
- | ||||
| 7 | 61003716 | Seal, Crisper Pan (frt) | 11 |
|
- | ||||
| 7 | 61003671 | Seal, Crisper Shelf (rear) | 11 |
|
- | ||||
| 8 | WP61006081 | Cover Assy., Air Return (Replaces: 61004287) | 11 |
|
$ 80.27 | ||||
| 9 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 9 | 61003723 | Cover, Meat Control Tape | 11 |
|
- | ||||
| 10 | 61003888 | Strip, Filler (sides) | 11 |
|
- | ||||
| 11 | 61003734 | Glass, Meat Shelf (spillproof) | 11 |
|
- | ||||
| 12 | 61004109 | Base, Filler Strip (rt) | 11 |
|
- | ||||
| 12 | 400019-1 | Screw | 11 |
|
- | ||||
| 12 | 61004110 | Base, Filler Strip (lt) | 11 |
|
- | ||||
| 13 | 61002657 | Holder, Beverage | 11 |
|
- | ||||
| 14 | 61003718 | Pan, Meat | 11 |
|
- | ||||
| 15 | 67423-2 | Roller | 11 |
|
$ 20.83 | ||||
| 16 | 65275-6 | Screw | 11 |
|
$ 5.48 | ||||
| 17 | 61003781 | Slide, Control | 11 |
|
- | ||||
| 18 | 61003725 | Retainer, Duct | 11 |
|
- | ||||
| 18 | 61003785 | Duct, Air (meat) | 11 |
|
- | ||||
| 19 | 61003674 | Slide, Control (meat) | 11 |
|
- | ||||
| 20 | 61003784 | Cover, Meat Pan Slide | 11 |
|
- | ||||
| 20 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 21 | 61003712 | Shelf, Crisper (lwr) | 11 |
|
- | ||||
| 22 | 61003713 | Shelf, Crisper (upr) | 11 |
|
- | ||||
| 23 | 61003715 | Seal, Crisper Side (lwr) | 11 |
|
- | ||||
| 23 | 61003714 | Seal, Crisper Side (upr) | 11 |
|
- | ||||
| 24 | 61004507 | Front Assy., Meat Pan | 11 |
|
- | ||||
| 25 | 70459-1 | Receptacle, Bulb | 11 |
|
- | ||||
| 26 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 11 |
|
$ 19.22 | ||||
| 27 | 61003770 | Frame, Meat Shelf | 11 |
|
- | ||||
| 28 | 61003439 | Shield, Light | 11 |
|
$ 38.58 | ||||
| 29 | 61004508 | Front Assy., Crisper Pan | 11 |
|
- | ||||
| 30 | WP59002061 | Screw (Replaces: 61003692) | 11 |
|
$ 6.98 | ||||
| 30 | 61003690 | Base, Lampholder | 11 |
|
- | ||||
| 31 | 61003722 | Tape, Meat Control | 11 |
|
- |
