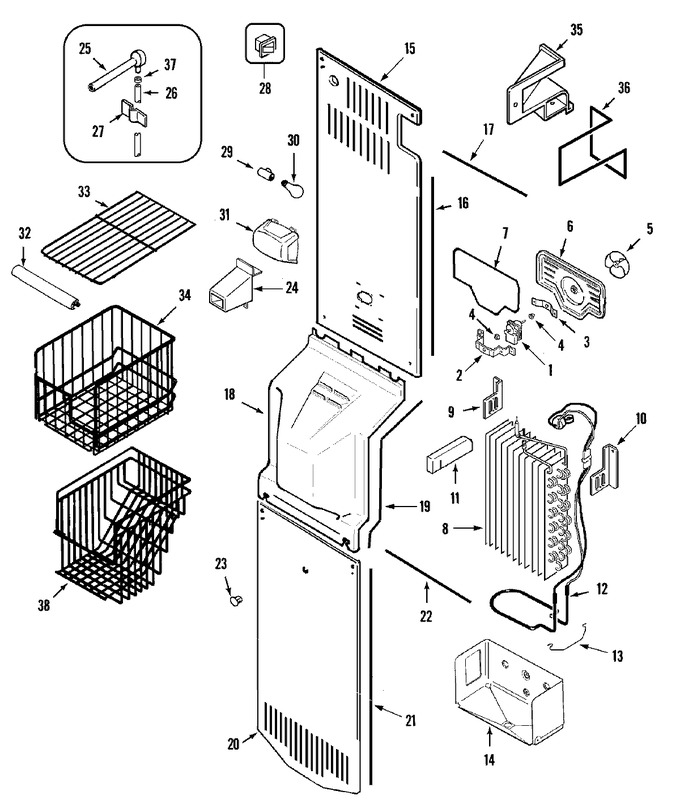

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61005263 | Motor, Evaporator Fan | 13 |
|
$ 0.01 | ||||
| 2 | WP8281227 | Screw (Replaces: 61002819) | 13 |
|
$ 9.40 | ||||
| 2 | 61001930 | Bracket, Evaporator Fan | 13 |
|
- | ||||
| 3 | WP8281227 | Screw (Replaces: 61002819) | 13 |
|
$ 9.40 | ||||
| 3 | 61002234 | Retainer, Evaporator Fan | 13 |
|
- | ||||
| 4 | 61002235 | Bushing, Evaporator Fan | 13 |
|
- | ||||
| 5 | 61004410 | Blade, Evaporator Fan | 13 |
|
- | ||||
| 6 | 61003677 | Shroud, Fan | 13 |
|
- | ||||
| 7 | WP854334 | Seal, Fan Shroud (Replaces: 61003381) | 13 |
|
$ 11.95 | ||||
| 8 | 12001640 | Evap/heat Exch Assy23/24/25sxs | 13 |
|
$ 297.16 | ||||
| 9 | 61003215 | Bracket, Evaporator (lt) | 13 |
|
- | ||||
| 10 | 61003216 | Bracket, Evaporator (rt) | 13 |
|
- | ||||
| 11 | 61003213 | Block, Air | 13 |
|
- | ||||
| 12 | WP61006152 | Heater & Therm. Assy., Defrost (Replaces: 61004311) | 13 |
|
$ 126.28 | ||||
| 13 | WP67005457 | Clip, Defrost Heater (Replaces: 61004152) | 13 |
|
$ 9.61 | ||||
| 14 | 61003382 | Housing, Evaporator | 13 |
|
- | ||||
| 15 | 61006027 | Cover, Coil (upr) | 13 |
|
- | ||||
| 15 | 61005618 | Screw | 13 |
|
- | ||||
| 16 | WP854334 | Seal, Upper Cover (rt) (Replaces: 61003385) | 13 |
|
$ 11.95 | ||||
| 16 | WP854334 | Seal, Upper Cover (lt) (Replaces: 61003384) | 13 |
|
$ 11.95 | ||||
| 17 | 61003386 | Seal, Upper Cover (top) | 13 |
|
- | ||||
| 18 | 61003387 | Cover, Evaporator Fan | 13 |
|
- | ||||
| 19 | WP854334 | Seal (Replaces: 61003209) | 13 |
|
$ 11.95 | ||||
| 20 | 61003388 | Cover, Coil (lwr) | 13 |
|
- | ||||
| 20 | 61004424 | Screw | 13 |
|
- | ||||
| 21 | WP854334 | Seal (Replaces: 61003212) | 13 |
|
$ 11.95 | ||||
| 22 | 61003389 | Seal, Lower Cover | 13 |
|
- | ||||
| 23 | 61001952 | Plug Button, Evap. Cover | 13 |
|
- | ||||
| 24 | 61005812 | Tunnel, Air | 13 |
|
- | ||||
| 25 | 61005743 | Grommet, Fill Tube | 13 |
|
- | ||||
| 26 | WPB5705307 | Tube, Valve (Replaces: 67579-1) | 13 |
|
$ 11.19 | ||||
| 27 | 61004913 | Clip, Water Line (adhesive) | 13 |
|
- | ||||
| 28 | W11396033 | Switch, Light (Replaces: 61005052) | 13 |
|
Immediately | $ 33.57 | |||
| 28 | 61006167 | Switch, Light | 20 |
|
$ 6.47 | ||||
| 29 | 67002218 | Receptacle, Bulb | 17 |
|
- | ||||
| 29 | 70459-1 | Receptacle, Bulb | 13 |
|
- | ||||
| 30 | WP67002552 | Bulb, Light (40w-250v) (Replaces: 67002552) | 17 |
|
Immediately | $ 10.58 | |||
| 30 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 13 |
|
$ 19.22 | ||||
| 31 | 61002272 | Shield, Light | 13 |
|
- | ||||
| 32 | 61003390 | Trim, Shelf (frt) | 13 |
|
- | ||||
| 33 | 61003391 | Shelf, Frz. | 13 |
|
- | ||||
| 33 | 61003392 | Shelf, Frz. | 13 |
|
- | ||||
| 34 | 61003483 | Basket, Pizza | 13 |
|
- | ||||
| 35 | 61003205 | Diverter, Air | 13 |
|
- | ||||
| 35 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 36 | 61003206 | Seal, Air Diverter | 13 |
|
- | ||||
| 37 | WP488878 | Clamp, Water Line (Replaces: 61001161) | 13 |
|
$ 10.44 | ||||
| 38 | 61003393 | Basket, Frz. | 13 |
|
- | ||||
| 39 | 61006058 | Wire Harness, Frz. | 17 |
|
- | ||||
| 39 | 61004158 | Wire Harness, Frz. | 13 |
|
- | ||||
| 39 | 61003610 | Wire Harness, Fan & Heater | 13 |
|
- |
