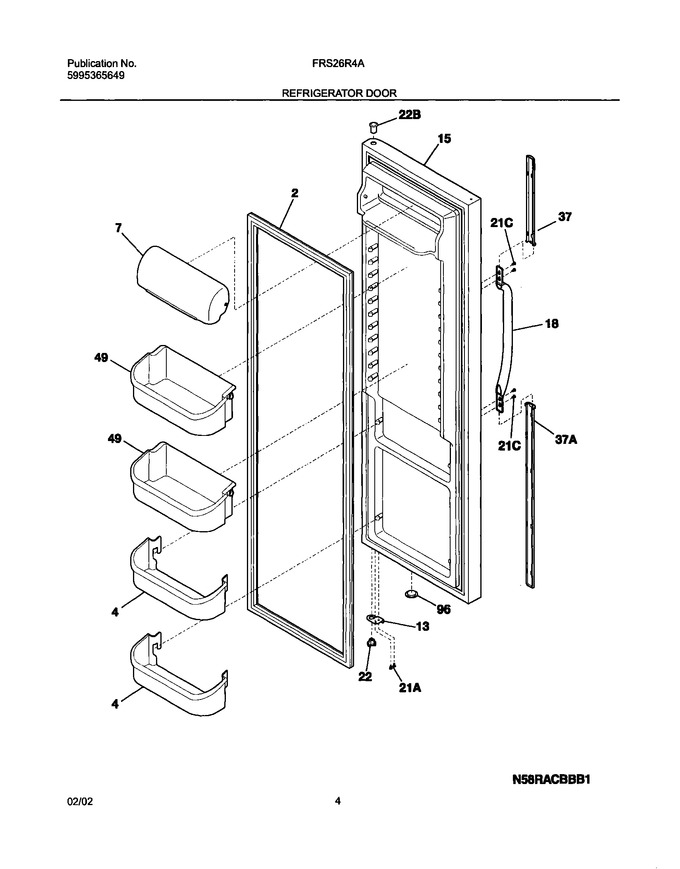

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 5303918455 | Door Stop,black ,ref (Replaces: 240456905) |
|
$ 142.04 | |||||
| 15 | 240451930 | Door-refr,black ,complete Assy |
|
$ 387.14 | |||||
| 18 | 218762703 | Handle-door,black |
|
$ 67.04 | |||||
| 22 | 240328201 | Bearing-hinge,closer |
|
Immediately | $ 17.72 | ||||
| 37 | 218811620 | Trim-handle,black ,upper |
|
- | |||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 85.64 | ||||
| 96 | 240345506 | Plug,door Foam Hole ,black |
|
$ 51.87 | |||||
| 21A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 21C | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 22B | 240328403 | Bearing-hinge,upper |
|
$ 14.85 | |||||
| 37A | 5304471621 | Trim-handle,black ,lower (Replaces: 218811617) |
|
$ 97.83 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| F2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 240390605) |
|
Immediately | $ 225.62 | ||||
| NI | 218676004 | Band-decorative,satin Aluminum , |
|
$ 57.60 |
