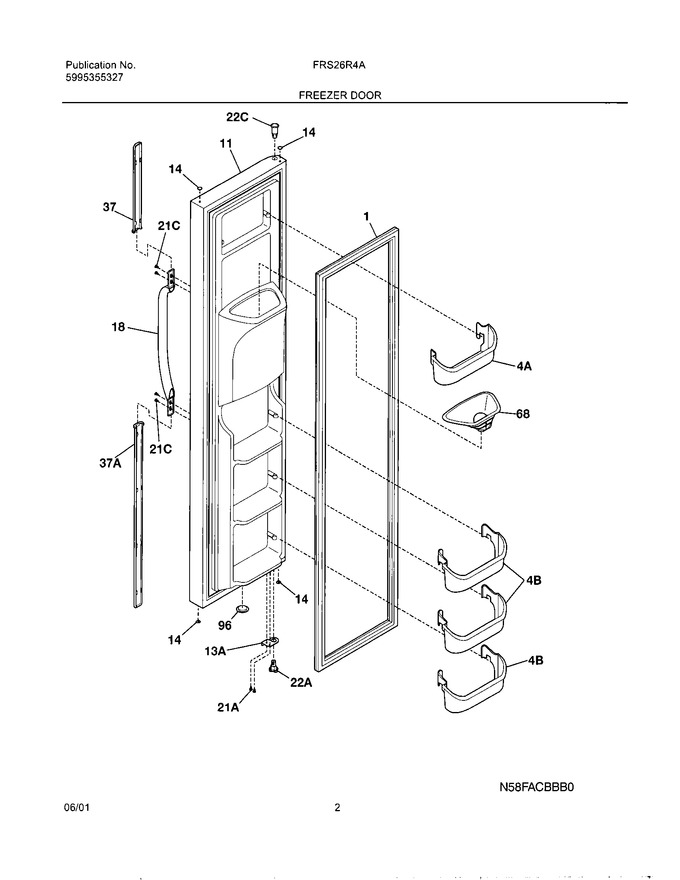

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Gasket-frzr Door,white ,magnetic   (Replaces: 240390602)				$ 95.17
11	240451807		Door-frzr,bisque ,complete Assy		Appelez-nous	-
14	218915704		Plug-button,bisque		Appelez-nous	-
18	218762706		Handle-door,bisque				$ 158.76
37	218811632		Trim-handle,bisque ,upper		Appelez-nous	-
68	240467701		Chute-ice		Appelez-nous	-
96	240345503		Plug-foam Hole,white		Appelez-nous	-
13A	240456904		Door Stop,bisque ,frzr		Appelez-nous	-
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,upper				$ 19.85
37A	218676004		Band-decorative,satin Aluminum ,				$ 57.60
37A	218811631		Trim-handle,bisque ,lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
NI	240323201		Wiring Harness		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71
NI	5303918256		Dispenser Heater Kit				$ 474.16

    View Diagram in Separate Window       Print Part List
