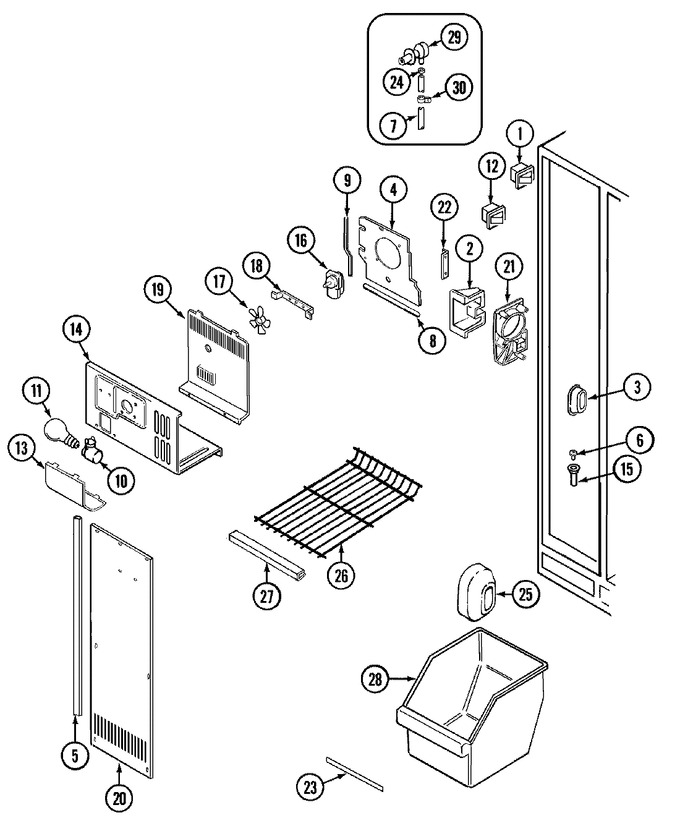

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68058-2 | Switch, Interlock | 12 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 12 |
|
- | ||||
| 3 | 70034-1 | Retainer, Air Return | 12 |
|
- | ||||
| 3 | 53727-1 | Retainer, Air Tunnel | 12 |
|
- | ||||
| 4 | 67297-6 | Cover, Coil Upper | 12 |
|
- | ||||
| 5 | 61001771 | Gasket, Lower Cover | 12 |
|
- | ||||
| 6 | 52526-1 | Grommet | 12 |
|
- | ||||
| 7 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 12 |
|
$ 11.19 | ||||
| 8 | 68946-6 | Seal | 12 |
|
- | ||||
| 9 | 66325-20 | Seal | 12 |
|
$ 8.22 | ||||
| 10 | 68974-3 | Receptacle, Bulb | 12 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 12 |
|
Immediately | $ 10.58 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 12 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 12 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 400015-36) | 12 |
|
Immediately | $ 12.62 | |||
| 14 | 69724-1 | Box, Auger Motor | 12 |
|
- | ||||
| 15 | 26527-11 | Tube, Drain | 12 |
|
- | ||||
| 16 | 61001838 | Wire Harness, Frz. Adapter | 12 |
|
- | ||||
| 16 | 69298-2 | Motor, Fan | 12 |
|
- | ||||
| 16 | 403067-1 | Screw | 12 |
|
- | ||||
| 17 | 61001770 | Blade, Evaporator Fan | 12 |
|
- | ||||
| 18 | WP488729 | Screw (Replaces: 9986-45) | 12 |
|
Immediately | $ 7.01 | |||
| 18 | 64856-1 | Bracket, Fan Motor | 12 |
|
- | ||||
| 19 | 61001760 | Shield, Fan | 12 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 400015-36) | 12 |
|
Immediately | $ 12.62 | |||
| 20 | 69725-1 | Cover, Coil Lower | 12 |
|
- | ||||
| 21 | 67352-1 | Orifice, Frz. Control (outlet) | 12 |
|
- | ||||
| 22 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 22 | 69727-1 | Bracket Auger Motor | 12 |
|
- | ||||
| 23 | 68124-97 | Trim, Basket | 12 |
|
- | ||||
| 24 | WP488878 | Clamp, Water Line (Replaces: 61001161) | 12 |
|
$ 10.44 | ||||
| 25 | 67837-1 | Insulation, Air Return | 12 |
|
- | ||||
| 26 | 66603-43 | Shelf, Wire | 12 |
|
- | ||||
| 27 | 61001163 | Trim, Shelf | 12 |
|
- | ||||
| 28 | 66636-132 | Drawer, Frz. | 12 |
|
- | ||||
| 29 | 69219-1 | Grommet | 12 |
|
- | ||||
| 30 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) | 12 |
|
$ 10.06 |
