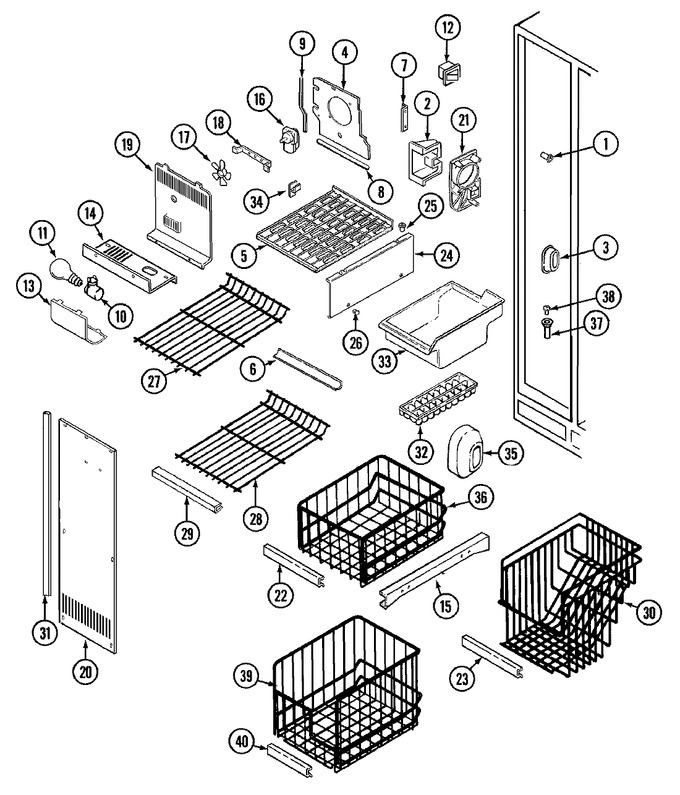

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 70034-1 | Retainer, Air Return | 10 |
|
- | ||||
| 4 | 67297-6 | Cover, Coil Upper | 10 |
|
- | ||||
| 5 | 67114-4 | Shelf, Ice Tray | 10 |
|
- | ||||
| 6 | 70136-1 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 7 | 61001703 | Bracket, Support | 10 |
|
- | ||||
| 7 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 8 | 68946-6 | Seal | 10 |
|
- | ||||
| 9 | 66325-20 | Seal | 10 |
|
$ 8.22 | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 10 |
|
Immediately | $ 10.58 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | 61001745 | Support, Light Shield | 10 |
|
- | ||||
| 15 | WP67006908 | Screw (Replaces: 400022-1) | 10 |
|
Immediately | $ 7.16 | |||
| 15 | 69519-1 | Glide, Basket | 10 |
|
- | ||||
| 16 | 69298-2 | Motor, Fan | 10 |
|
- | ||||
| 16 | 403067-1 | Screw | 10 |
|
- | ||||
| 16 | 61001702 | Wire Harness, Frz. Adaptor | 10 |
|
- | ||||
| 17 | 61001770 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | 61001757 | Shield, Fan | 10 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 67335-1 | Cover, Lower Coil | 10 |
|
- | ||||
| 21 | 67352-1 | Orifice, Frz. Control (outlet) | 10 |
|
- | ||||
| 22 | 70135-13 | Trim, Upper Basket | 10 |
|
- | ||||
| 23 | 70135-16 | Trim, Lower Basket | 10 |
|
- | ||||
| 24 | 61003070 | Divider, Ice Shelf | 10 |
|
- | ||||
| 25 | 67149-1 | Support, Divider | 10 |
|
- | ||||
| 25 | 400019-1 | Screw | 10 |
|
- | ||||
| 26 | 67150-1 | Fastener, Divider | 10 |
|
- | ||||
| 27 | 67178-10 | Shelf, Frz. | 10 |
|
- | ||||
| 28 | 67178-8 | Shelf, Wire | 10 |
|
- | ||||
| 29 | 70135-19 | Trim, Shelf | 10 |
|
- | ||||
| 30 | 69350-2 | Basket, Frz Wire | 10 |
|
- | ||||
| 31 | 61001771 | Gasket, Lower Cover | 10 |
|
- | ||||
| 32 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 33 | WP67001255 | Pan, Ice (Replaces: 69919-1) | 10 |
|
$ 182.77 | ||||
| 34 | 67143-1 | Support Ice Shelf | 10 |
|
- | ||||
| 34 | W11233072 | Screw (Replaces: 400016-1) | 10 |
|
Immediately | $ 12.62 | |||
| 35 | 67837-1 | Insulation, Air Return | 10 |
|
- | ||||
| 36 | 69348-2 | Basket, Frz Wire | 10 |
|
- | ||||
| 37 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 38 | 52526-1 | Grommet | 10 |
|
- | ||||
| 39 | 69349-2 | Basket, Pizza | 10 |
|
- | ||||
| 40 | 70135-14 | Trim, Pizza Basket | 10 |
|
- |
