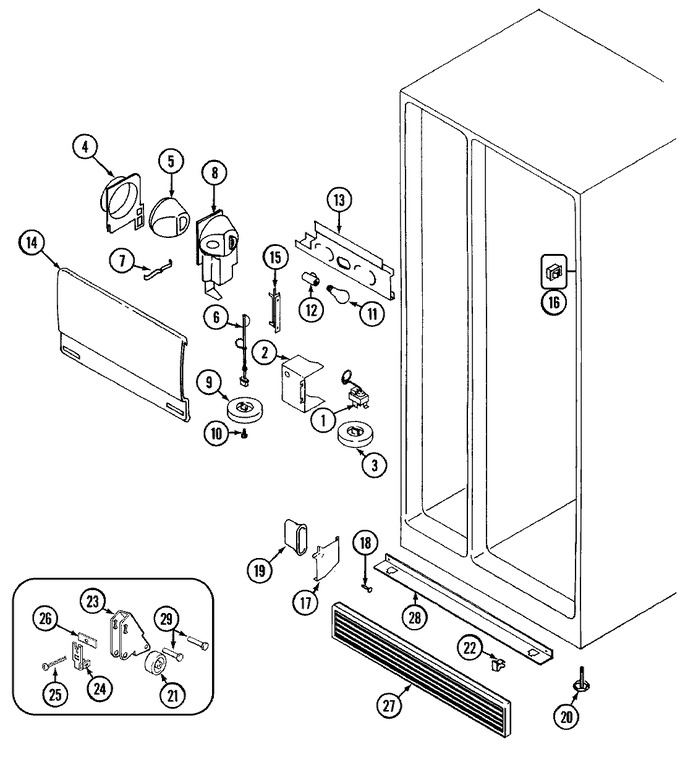

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69694-5 | Control, Temperature | 11 |
|
- | ||||
| 1 | 67692-1 | Insulation, Control | 11 |
|
- | ||||
| 1 | 401012-1 | Screw, Control Mounting | 11 |
|
- | ||||
| 2 | 67126-1 | Housing, Temperature Control | 11 |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 3 | 29893-7 | Knob, Temp. Control | 11 |
|
- | ||||
| 4 | 53835-2 | Orifice, Freezer Control | 11 |
|
- | ||||
| 5 | 58767-1 | Insulation, Housing | 11 |
|
- | ||||
| 6 | 68610-1 | Baffle | 11 |
|
- | ||||
| 7 | 52648-1 | Spring, Baffle | 11 |
|
- | ||||
| 8 | 67354-1 | Housing, Frz. Control | 11 |
|
- | ||||
| 8 | 400027-1 | Screw | 11 |
|
- | ||||
| 9 | 29893-12 | Knob | 11 |
|
- | ||||
| 10 | 400001-1 | Screw | 11 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 11 |
|
Immediately | $ 10.58 | |||
| 12 | 68974-3 | Receptacle, Bulb | 11 |
|
- | ||||
| 13 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 13 | 69081-2 | Housing | 11 |
|
- | ||||
| 14 | 69194-2 | Shield, Light Ref | 11 |
|
- | ||||
| 15 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 15 | 67125-1 | Support, Light Shield | 11 |
|
- | ||||
| 16 | W11384469 | Switch, Light (Replaces: 66987-1) | 11 |
|
Immediately | $ 33.51 | |||
| 17 | 69982-1 | Cover, Air Return | 11 |
|
- | ||||
| 18 | 28013-2 | Rivet, Air Tunnel | 11 |
|
- | ||||
| 18 | 57410-1 | Tunnel | 11 |
|
- | ||||
| 18 | 57411-1 | Retainer | 11 |
|
- | ||||
| 19 | 67684-1 | Tunnel, Air Return | 11 |
|
- | ||||
| 20 | W11117769 | Leg, Leveling (Replaces: 68664-2) | 11 |
|
Immediately | $ 16.61 | |||
| 21 | 62830-7 | Wheel Assy. | 11 |
|
- | ||||
| 22 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 22 | 60100-1 | Clip, Kickplate | 11 |
|
$ 5.85 | ||||
| 23 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 23 | 62794-1 | Bracket, Wheel | 11 |
|
- | ||||
| 24 | 67280-1 | Faceplate, Bracket | 11 |
|
- | ||||
| 25 | 56487-2 | Screw, Wheel Adjustment | 11 |
|
- | ||||
| 26 | 59101-1 | Tapping Plate, Wheel | 11 |
|
- | ||||
| 27 | 68981-6 | Kickplate (alm) | 11 |
|
- | ||||
| 28 | 67255-3 | Rail, Horizontal Support | 11 |
|
- | ||||
| 28 | 3400518 | Screw (Replaces: 65275-42) | 11 |
|
$ 11.68 |
