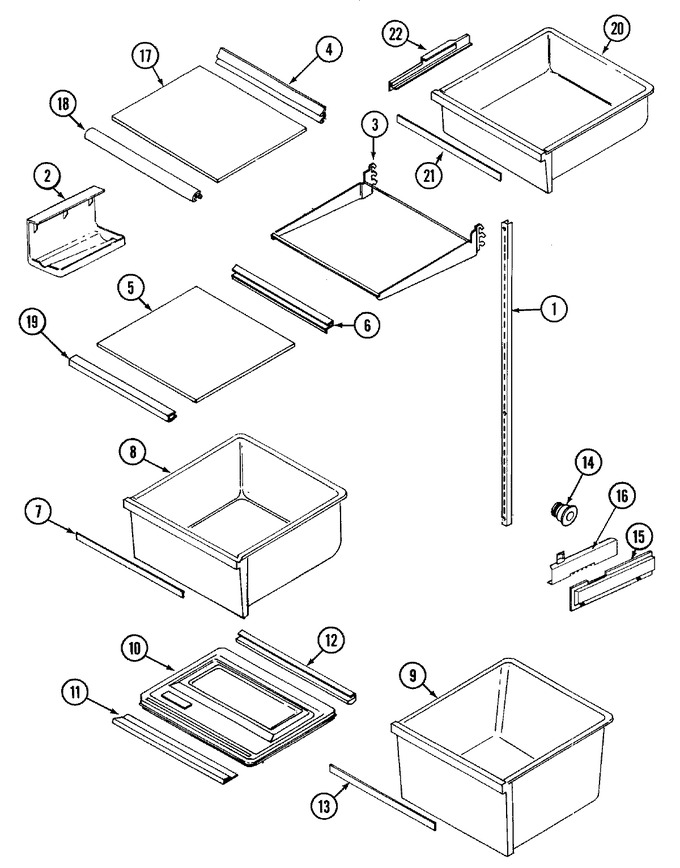

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	13	Appelez-nous	-
1	400037-28		Screw	13	Appelez-nous	-
2	69615-1		Holder, Beverage	13	Appelez-nous	-
3	65618-5		Frame, Shelf	13	Appelez-nous	-
4	66333-1		Clip, Shelf Trim	13	Appelez-nous	-
4	65276-15		Trim, Shelves (rear)	13	Appelez-nous	-
5	66604-38		Shelf, Crisper	13	Appelez-nous	-
6	68157-2		Seal, Crisper Pan (rear)	13	Appelez-nous	-
7	68124-79		Insert	13	Appelez-nous	-
8	66636-96		Pan, Crisper	13	Appelez-nous	-
9	66636-97		Pan, Crisper	13	Appelez-nous	-
10	65608-6		Cover, Meat Pan	13	Appelez-nous	-
11	65648-2		Seal, Meat Pan (front)	13	Appelez-nous	-
12	65649-2		Seal, Meat Pan (rear)	13	Appelez-nous	-
13	68124-79		Insert	13	Appelez-nous	-
14	53726-2		Tunnel, Air (meat)	13	Appelez-nous	-
15	65737-2		Control Housing	13	Appelez-nous	-
15	56686-5		Clip, Secondary Seal	13	Appelez-nous	-
16	65736-1		Slide Control, (meat)	13	Appelez-nous	-
17	66604-36		Shelf, Glass	13	Appelez-nous	-
17	66604-37		Shelf, Deli	13	Appelez-nous	-
18	66649-2		Trim, Shelves (front)	13	Appelez-nous	-
19	66650-2		Seal, Crisper Pan (front)	13	Appelez-nous	-
20	66636-81		Tray, Deli	13	Appelez-nous	-
21	68124-79		Insert	13	Appelez-nous	-
22	68805-2		Rail, Deli Pan	13	Appelez-nous	-
