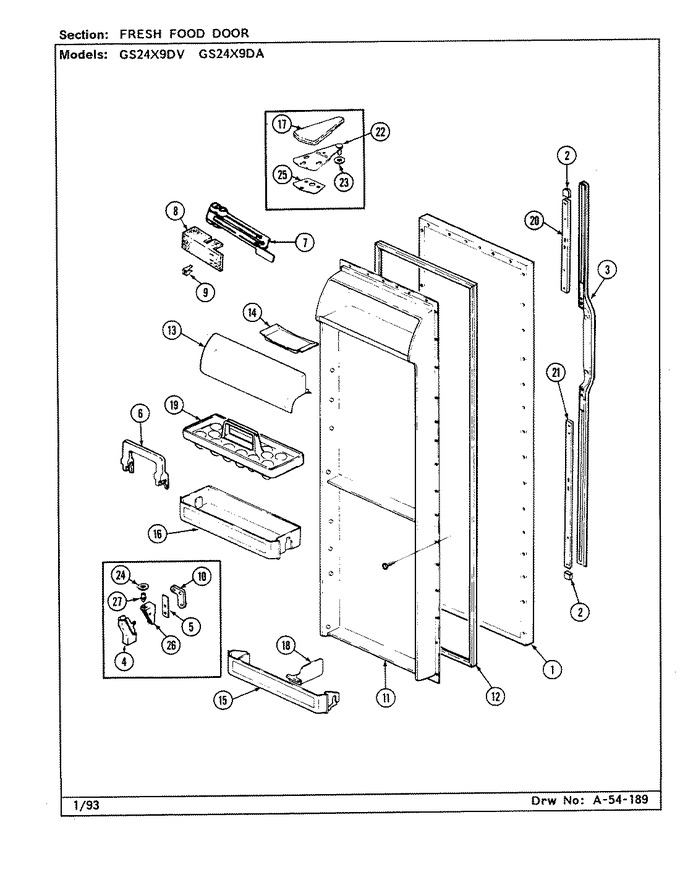

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72341-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	69590-1		End Cap, Handle		Appelez-nous	-
2	69477-1		Clip		Appelez-nous	-
3	29356-1		Retainer, Nameplate		Appelez-nous	-
3	495034-900		Plug Button, Door		Appelez-nous	-
3	12000043		Kit, Handle Assy (almond)		Appelez-nous	-
4	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
5	69510-1		Shim, Lower Hinge		Appelez-nous	-
6	69795-1		Retainer, Bottle		Appelez-nous	-
7	69258-1		Closer, Door		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
9	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
9	69261-1		Bracket, Closer		Appelez-nous	-
10	65275-59		Screw		Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	69243-1		Liner, F.f. Door----na		Appelez-nous	-
12	70019-4		Gasket, Reffig.		Appelez-nous	-
13	69058-12		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	69607-1		Front, Pick-off		Appelez-nous	-
16	69608-1		Shelf, Pick-off		Appelez-nous	-
17	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
18	66645-6		Organizer Package		Appelez-nous	-
19	60066-1		Tray, Egg		Appelez-nous	-
20	69586-1		Trim, Handle		Appelez-nous	-
21	69586-2		Trim, Handle		Appelez-nous	-
22	53709-22		Hinge, Upper		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
23	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
24	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
25	65031-1		Shim, Upper Hinge		Appelez-nous	-
26	65275-51		Screw, Lower Hinge		Appelez-nous	-
26	69516-2		Hinge, Lower (blk)		Appelez-nous	-
27	69845-1		Pin, Lower Hinge				$ 44.55
