01 - Blower/control Panel

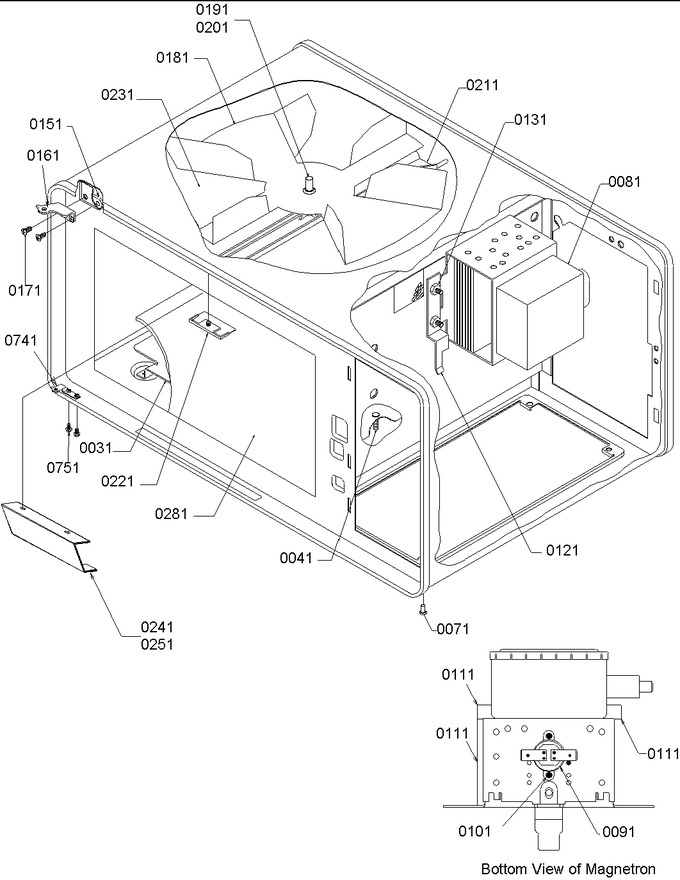

02 - Cavity
03 - Electrical Components/door
04 - Miscellaeous Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 31 | 4180030401 | Shelf, False Bottom |
|
- | |||||
| 41 | 4180030501 | Ass`y, Spacer Support-reworked |
|
- | |||||
| 71 | 42192P01 | Rivet-plastcx |
|
- | |||||
| 81 | 10794401 | Magnetron |
|
- | |||||
| 91 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 121 | 10830101 | Brkt-blower Supp |
|
- | |||||
| 131 | 5014-J | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 151 | 45010P01 | Plate Nut |
|
- | |||||
| 161 | 45009P01 | Brkt Top |
|
- | |||||
| 171 | 5147-AA | No.6 Flat Hd Machine Screw |
|
- | |||||
| 181 | 10825902 | Kit, Stirrer Blade |
|
- | |||||
| 191 | 43406P01 | Insert Stir |
|
- | |||||
| 201 | 38321P01 | Ball |
|
- | |||||
| 211 | 46394P01 | Kit, Stirrer Bar |
|
- | |||||
| 221 | 46800P01 | Stirrer Support Cover |
|
- | |||||
| 231 | 46713P01 | Stirrer Cover |
|
- | |||||
| 241 | 45325P01 | Shield, Splash |
|
- | |||||
| 251 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 281 | M50D44 | Shelf W/sealant Kit |
|
- | |||||
| 741 | 45179P01 | Hinge Asy |
|
- | |||||
| 751 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- |
