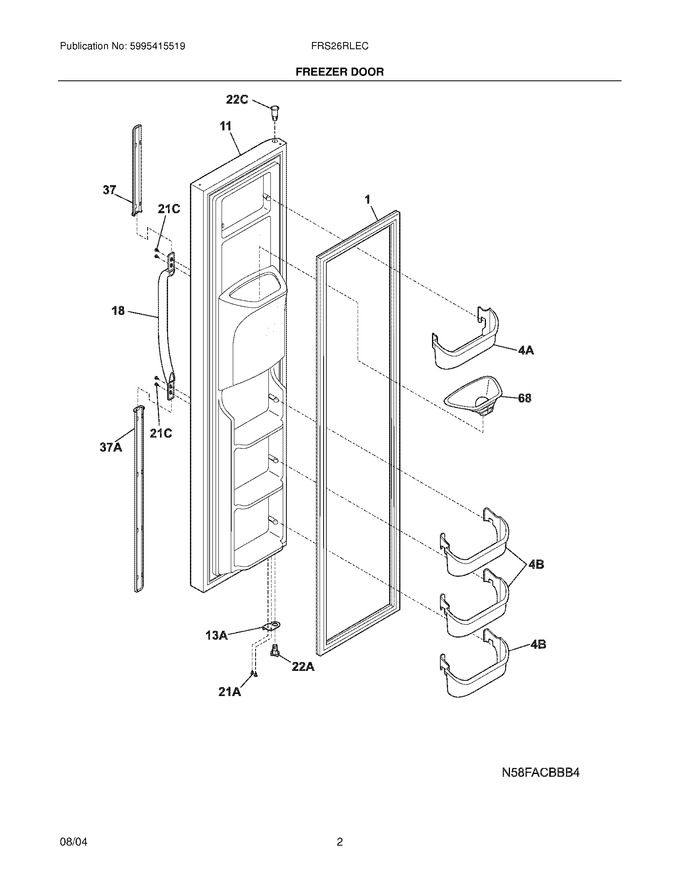

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240554261		Door-frzr,stainless ,complete Assy		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
37	218811620		Trim-handle,black ,upper		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	5304471621		Trim-handle,black ,lower   (Replaces: 218811617)				$ 97.83
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
F1	241786014		Gasket-frzr Door,black ,magnetic   (Replaces: 240390606)				$ 95.17
NI	218676004		Band-decorative,satin Aluminum ,				$ 57.60
NI	218490901		Cleaner,stainless Steel				$ 5.58
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 85.69
NI	5303918256		Dispenser Heater Kit				$ 474.16
