SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door

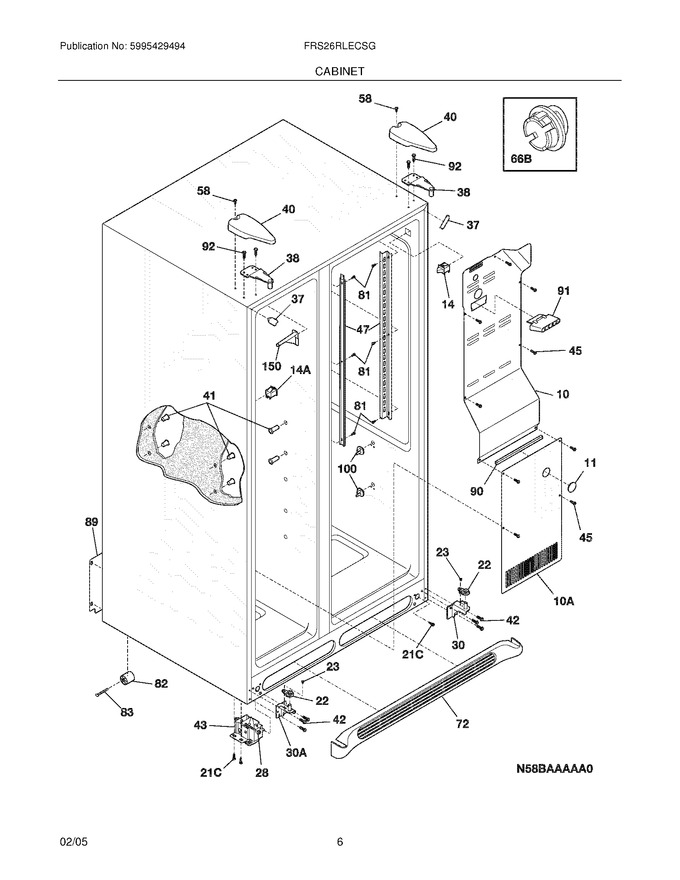

07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct   (Replaces: 240435906)				$ 123.23
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	240505801		Switch-light/lamp				$ 66.63
22	240457701		Plate-door Closer   (Replaces: 240457702)			Immediately	$ 56.70
23	240402701		Screw-no.10-32 X 1/4 Flat Hd				$ 21.79
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 31.33
30	5303918455		Bracket-lower Hinge, Ref   (Replaces: 240419101)				$ 142.04
37	240337603		Trim-cabinet Corner,black ,(2)				$ 6.51
38	240327207		Bracket-upper Hinge   (Replaces: 240327201)			Immediately	$ 57.50
40	240327007		Cover-upper Hinge,black			Immediately	$ 56.58
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8   (Replaces: 240578901)			Immediately	$ 14.18
43	5304499445		Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh).   (Replaces: 240335003)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500   (Replaces: 241500301)			Immediately	$ 4.55
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
72	240324411		Grille/kickplate,black   (Replaces: 240324406)				$ 68.04
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
89	5304520905		Cover Access   (Replaces: 241574602)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
100	241993101		Support,crisper Cover ,front ,(4)   (Replaces: 240423701)			Immediately	$ 5.62
100	241993001		Support,crisper Cover ,rear ,(4)   (Replaces: 240350802)			Immediately	$ 19.23
150	240368701		Guide-control Bulb		Appelez-nous	-
10A	240475907		Cover-evap Coil,lower				$ 115.03
14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
30A	5303918455		Bracket-lower Hinge   (Replaces: 240419102)				$ 142.04
66B	240374301		Diffuser-air				$ 77.26
66B	240518802		Pin-push,push-in ,plastic				$ 16.30
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
NI	240494001		Plug,button ,cab Liner Holes ,(2)   (Replaces: 240479601)			Immediately	$ 18.20
NI	240481601		Shim-lower Hinge				$ 26.75
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97

    View Diagram in Separate Window       Print Part List
