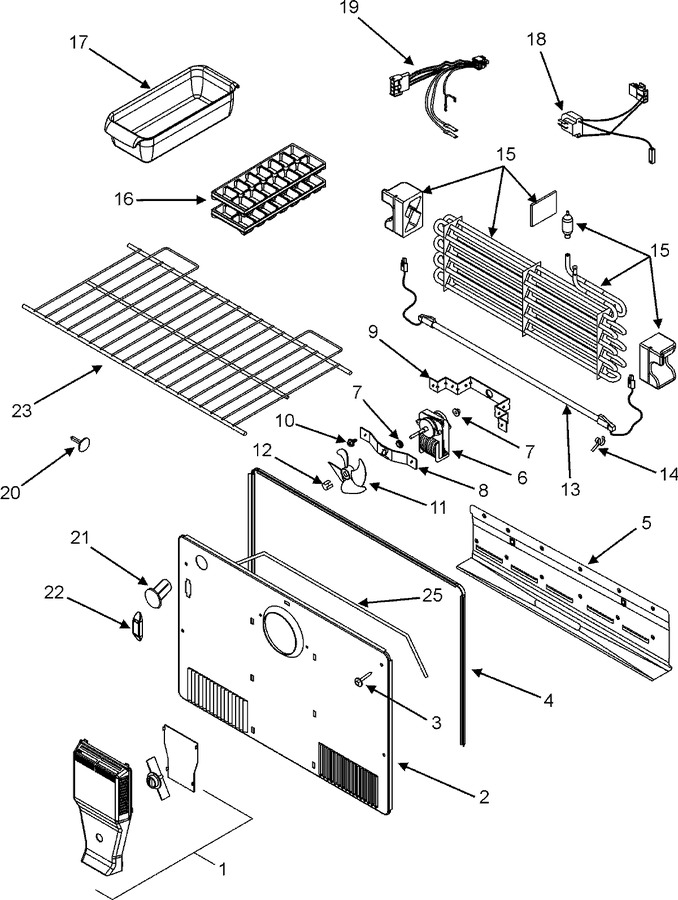

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001131		Tunnel Assy., Air	10	Appelez-nous	-
2	63001055		Cover, Evaporator	10	Appelez-nous	-
3	2256637		Screw   (Replaces: 63001036)	10			$ 11.60
4	63001056		Seal, Evaporator Cover	10	Appelez-nous	-
5	63001054		Tray, Drip	10	Appelez-nous	-
6	63001812		Motor, Evaporator Fan	10	Appelez-nous	-
7	63001058		Bushing, Evaporator Fan	10	Appelez-nous	-
8	63001062		Retainer, Evaporator Fan	10	Appelez-nous	-
9	63001063		Bracket, Evaporator Fan	10	Appelez-nous	-
10	WP489399		Screw   (Replaces: 63001104)	10			$ 6.26
11	63001060		Blade, Evaporator Fan	10	Appelez-nous	-
12	63001813		Clip, Fan Blade	10			$ 7.30
13	63001814		Heater, Defrost	10			$ 49.24
14	63001050		Clip, Defrost Heater	10	Appelez-nous	-
15	12002262		Kit, Evaporator	10			$ 254.31
16	WP841180A		Tray, Ice   (Replaces: 63001068)	10		Immediately	$ 41.00
17	63001546		Pan, Ice	10	Appelez-nous	-
18	63001816		Thermostat, Defrost	10	Appelez-nous	-
19	63001059		Wire Harness, Frz.	10	Appelez-nous	-
20	63001066		Plug Button, Ice Maker	10			$ 18.02
21	63001065		Cap, Fill Tube	10	Appelez-nous	-
22	63001064		Cap, I/m Wire Harness	10	Appelez-nous	-
23	63001067		Shelf, Frz Wire	10	Appelez-nous	-
