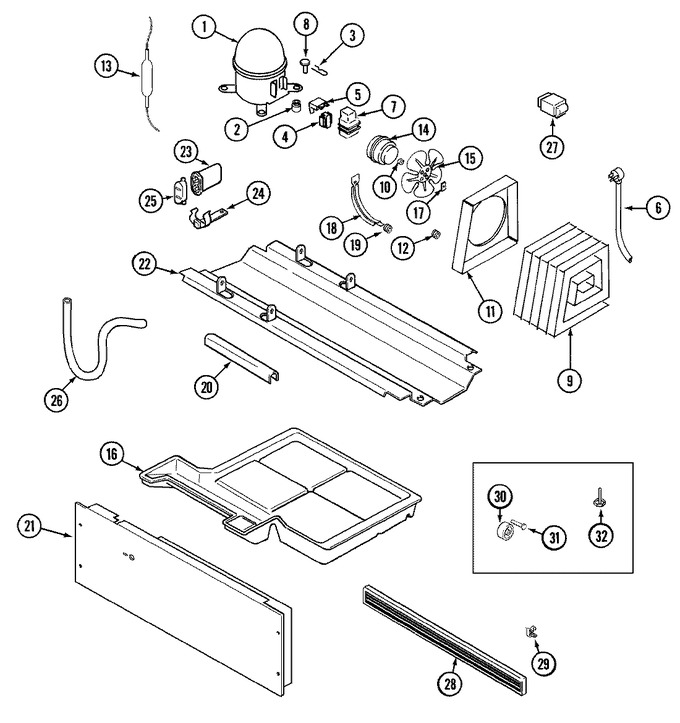

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61002097 | Wire Harness, Compressor | 10 |
|
- | ||||
| 1 | 12001431 | Compressor, (r134a)(220v) | 10 |
|
- | ||||
| 2 | 17245-4 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 52778-2 | Clip | 10 |
|
- | ||||
| 4 | 61001832 | Relay, Start | 10 |
|
- | ||||
| 5 | WP2183456 | Overload (Replaces: 61001983) | 10 |
|
$ 126.16 | ||||
| 6 | 61001835 | Cord, Power (europe) | 10 |
|
- | ||||
| 7 | WP61002138 | Cover, Terminal (Replaces: 61001828) | 10 |
|
$ 7.89 | ||||
| 8 | 52656-2 | Plug, Compressor | 10 |
|
- | ||||
| 9 | 61002811 | Condenser | 10 |
|
- | ||||
| 9 | WP489399 | Screw (Replaces: 61001885) | 10 |
|
$ 6.26 | ||||
| 10 | 61001686 | Washer, Fan Blade | 10 |
|
- | ||||
| 11 | 61001941 | Shroud, Condenser | 10 |
|
- | ||||
| 12 | 61002033 | Grommet, Condenser Tubing | 10 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 10 |
|
Immediately | $ 27.70 | |||
| 14 | 65275-33 | Screw | 10 |
|
- | ||||
| 14 | 61002996 | Motor, Condensor Fan | 10 |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 61001821) | 10 |
|
$ 114.00 | ||||
| 16 | 61002958 | Fastener, Drain Pan | 10 |
|
- | ||||
| 16 | 61001955 | Pan, Drain | 10 |
|
- | ||||
| 17 | WP486692 | Clip, Fan Blade (Replaces: 19914) | 10 |
|
$ 7.04 | ||||
| 18 | 69181-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | 10 |
|
- | ||||
| 20 | 61001974 | Isolator, Condenser | 10 |
|
- | ||||
| 21 | WP488729 | Screw (Replaces: 65275-49) | 10 |
|
Immediately | $ 7.01 | |||
| 21 | 61002697 | Cover, Compressor Compartment | 10 |
|
- | ||||
| 22 | 61002032 | Pan, Compressor Mtg. | 10 |
|
- | ||||
| 22 | WP67006715 | Screw (Replaces: 61002407) | 10 |
|
$ 6.47 | ||||
| 23 | 61001827 | Capacitor, Run | 10 |
|
- | ||||
| 24 | 61001830 | Bracket, Run Capacitor | 10 |
|
- | ||||
| 25 | 61001831 | Cover, Capacitor Terminal | 10 |
|
- | ||||
| 26 | 61002214 | Tube, Drain Trap | 10 |
|
- | ||||
| 27 | 61001829 | Cover, Electrical | 10 |
|
- | ||||
| 28 | 61002680 | Kickplate W/clips (wht) | 10 |
|
$ 36.54 | ||||
| 29 | 61001975 | Clip, Kickplate | 10 |
|
- | ||||
| 30 | WP61003826 | Wheel (rear) (Replaces: 61002103) | 10 |
|
$ 6.71 | ||||
| 31 | 61002104 | Pin, Wheel | 10 |
|
$ 5.70 | ||||
| 32 | 69810-1 | Cap, Leveling Leg | 10 |
|
- | ||||
| 32 | 61002105 | Leg Assy., Leveling | 10 |
|
- | ||||
| 33 | 61001981 | Manual, Use & Care | 10 |
|
- | ||||
| 33 | 61003623 | Manual, Use & Care | 12 |
|
- | ||||
| 34 | 16008421 | Manual, Service (crosley) | 10 |
|
- | ||||
| 34 | 16008248 | Manual, Service-no Refund | 10 |
|
- |
