SELECT A DIAGRAM

Diagram for 01 - Freezer Compartment
01 - Freezer Compartment

Diagram for 02 - Freezer Inner Door
02 - Freezer Inner Door

Diagram for 03 - Freezer Outer Door
03 - Freezer Outer Door

Diagram for 04 - Fresh Food Compartment
04 - Fresh Food Compartment

Diagram for 05 - Fresh Food Inner Door
05 - Fresh Food Inner Door

Diagram for 06 - Fresh Food Outer Door
06 - Fresh Food Outer Door

Diagram for 07 - Optional Ice Maker Kit (ice)
07 - Optional Ice Maker Kit (ice)

Diagram for 08 - Shelves & Accessories
08 - Shelves & Accessories

Diagram for 09 - Unit Compartment & System
09 - Unit Compartment & System


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

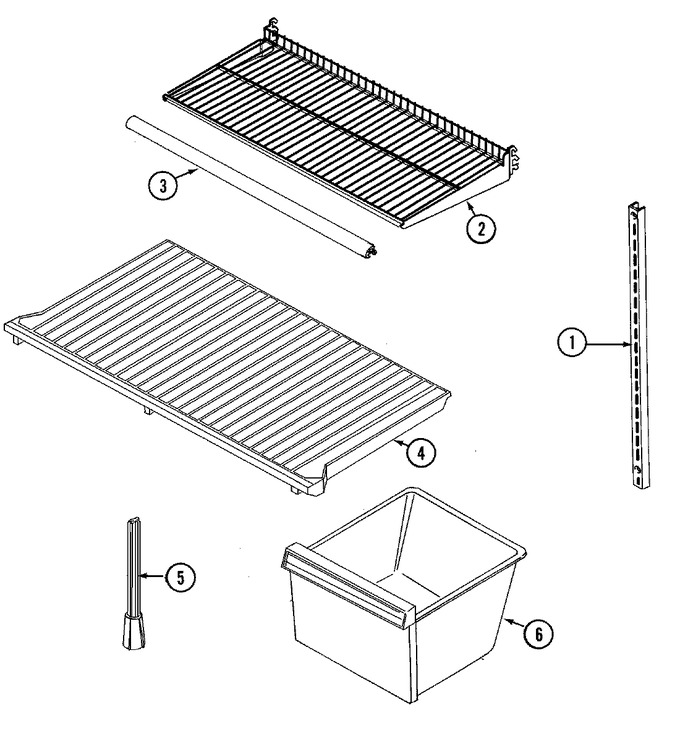

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 60096-8 Rail, Shelf Support (rt) 10 Appelez-nous -
1 60096-7 Rail, Shelf Support (lt) 10 Appelez-nous -
1 400037-28 Screw 10 Appelez-nous -
2 70105-4 Shelf, Full 10 Appelez-nous -
3 70109-5 Trim, Shelf 10 Appelez-nous -
4 61001583 Shelf, Crisper (w/trim) 10 Appelez-nous -
5 12001957 Support, Crisper Shelf   (Replaces: 66105-1) 10 Special Order $ 3.35

6 68221-149 Pan, Crisper 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for GT15A6XA
