SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door

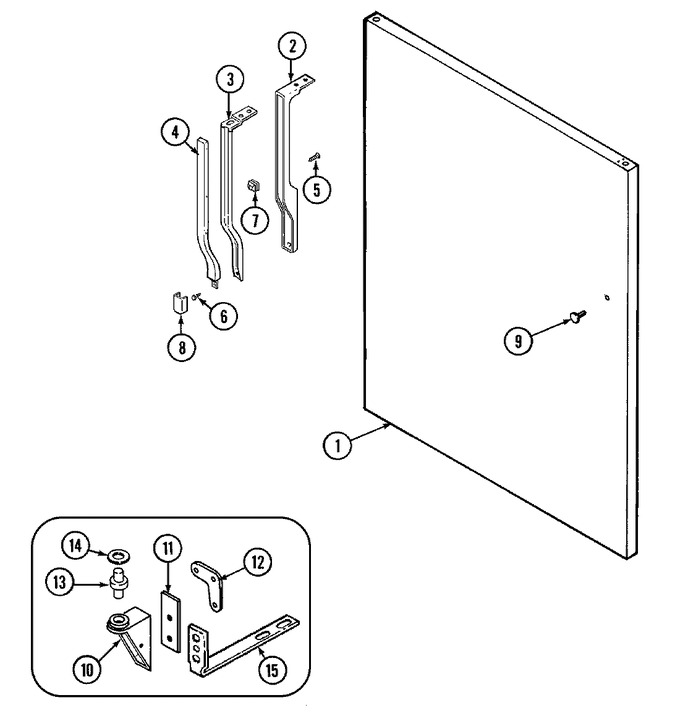

06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-2-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	70051-1		Handle, F.f. Door	10	Appelez-nous	-
2	65275-57		Screw	10	Appelez-nous	-
3	70052-1		Frame, Handle	10	Appelez-nous	-
4	70053-18		Insert, Handle (wht)	10	Appelez-nous	-
5	67934-1		Shim, Handle	10	Appelez-nous	-
5	65275-22		Screw	10	Appelez-nous	-
6	415033-1		Screw	10	Appelez-nous	-
7	69743-1		Grommet	10	Appelez-nous	-
8	70058-2		End Cap, Handle (wht)	10	Appelez-nous	-
9	67678-2		Plug Button (wht)	10	Appelez-nous	-
10	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
10	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
12	65275-59		Screw	10	Appelez-nous	-
13	69845-1		Pin, Lower Hinge	10			$ 44.55
14	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
15	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
