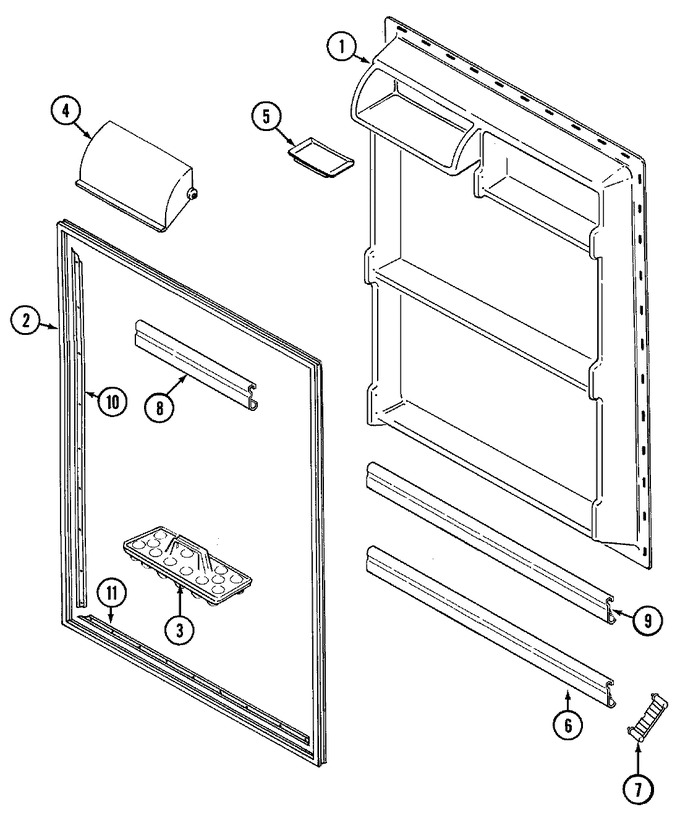

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	12	Appelez-nous	-
1	69443-1		Liner, F.f. Door	12	Appelez-nous	-
2	70025-2		Gasket, F.f. Door	12			$ 139.29
3	60066-1		Tray, Egg	12	Appelez-nous	-
4	69058-29		Door, Dairy	12	Appelez-nous	-
5	29936-2		Tray, Butter	12	Appelez-nous	-
6	WP70111-108		Trim, Shelf (22 11/16``)   (Replaces: 70111-19)	12		Immediately	$ 104.35
7	70197-1		Retainer, Shelf Trim	12		Immediately	$ 14.18
8	WP70111-108		Trim, Shelf   (Replaces: 70111-4)	12		Immediately	$ 104.35
9	WP70111-108		Trim, Shelf   (Replaces: 70111-16)	12		Immediately	$ 104.35
10	69999-7		Retainer, Gasket (side)	12	Appelez-nous	-
11	69999-4		Retainer, F.f Gasket (top/btm)	12	Appelez-nous	-
