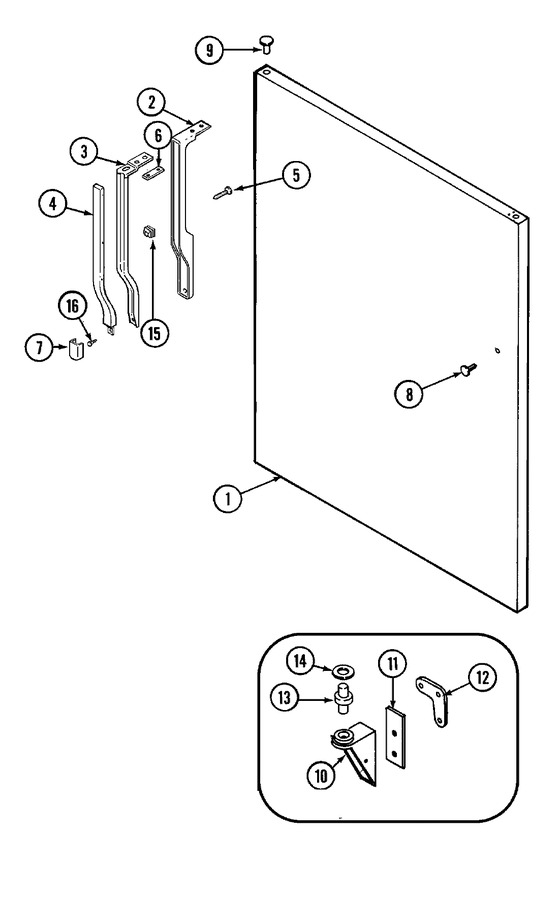

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001793		Panel, F.f. Door (wht)	12	Appelez-nous	-
2	70051-1		Handle, F.f. Door	12	Appelez-nous	-
2	61001794		Screw	12	Appelez-nous	-
3	70052-1		Frame, Handle	12	Appelez-nous	-
4	70053-18		Insert, Handle (wht)	12	Appelez-nous	-
5	415033-1		Screw	12	Appelez-nous	-
6	67934-1		Shim, Handle	12	Appelez-nous	-
7	70058-2		End Cap, Handle (wht)	12	Appelez-nous	-
8	67678-2		Plug Button (wht)	12	Appelez-nous	-
8	61001795		Plug Button (wht)	12	Appelez-nous	-
9	67634-2		Plug Button, Hinge Cup (wht)	12	Appelez-nous	-
10	65275-51		Screw, Lower Hinge	12	Appelez-nous	-
10	69516-2		Hinge, Lower (blk)	12	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	12	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	12	Appelez-nous	-
12	65275-59		Screw	12	Appelez-nous	-
13	69845-1		Pin, Lower Hinge	12			$ 44.55
14	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	12		Immediately	$ 45.86
15	69743-1		Grommet	12	Appelez-nous	-
16	W10856122		Screw   (Replaces: 61001287)	12			$ 6.98
