SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet

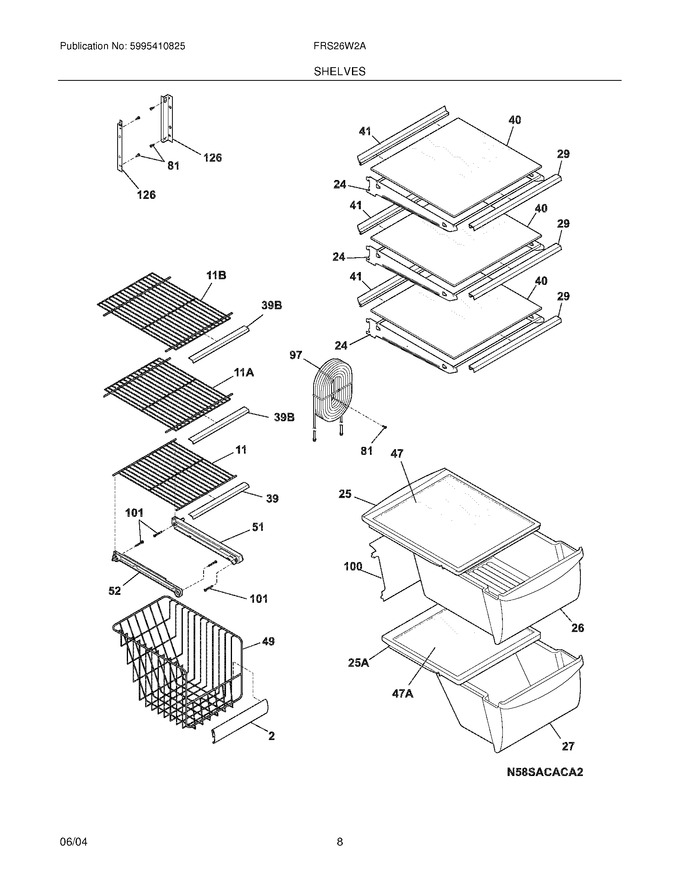

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240373108		Frame-shelf,cantilever		Appelez-nous	-
25	240350702		Cover-crisper Pan,upper			Immediately	$ 41.92
26	240351061		Pan-crisper,upper   (Replaces: 240351003)			Immediately	$ 110.01
27	240351203		Pan-crisper,lower		Appelez-nous	-
29	240357706		Trim-shelf,front				$ 51.19
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
40	240350623		Glass-shelf,16.76`` X 17.60``				$ 142.93
41	240357806		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240530402		Basket-sliding				$ 232.16
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545301		Water Tank Assy,coiled Tubing ,no Filter				$ 275.42
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 73.57
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 47.48
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 43.24
11A	241657512		Shelf-freezer,fixed Wire   (Replaces: 240338702)				$ 16.87
11B	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
39B	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52

    View Diagram in Separate Window       Print Part List
