Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 65275-5 Screw 12 Appelez-nous -
1 69444-1 Liner, F.f. Door 12 Appelez-nous -
2 70025-2 Gasket, F.f. Door 12 Special Order $ 139.29

3 69999-7 Retainer, Gasket (side) 12 Appelez-nous -
4 69999-4 Retainer, F.f Gasket (top/btm) 12 Appelez-nous -
5 61001186 Door, Dairy 12 Appelez-nous -
6 28272-6 Bumper, Door 12 Appelez-nous -
7 29936-2 Tray, Butter 12 Appelez-nous -
8 WP65245-1 Retainer, Shelf Trim   (Replaces: 65245-1) 12 Special Order $ 9.39

9 61001202 Trim, Door Shelf 12 Appelez-nous -
10 67210-2 Endcap, Shelf Trim 12 Appelez-nous -
11 61001184 Trim, Door Shelf 12 Appelez-nous -
12 67208-3 Endcap, Shelf Trim 12 Special Order $ 13.60

13 61001185 Trim, Door Shelf 12 Appelez-nous -
14 67211-2 Endcap, Shelf Trim 12 In-Stock Immediately $ 17.62

15 67215-2 Tray, Egg 12 Appelez-nous -
16 67195-7 Orgainzer, Shelf (wide) 12 Appelez-nous -
16 67195-8 Organizer, Shelf 12 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

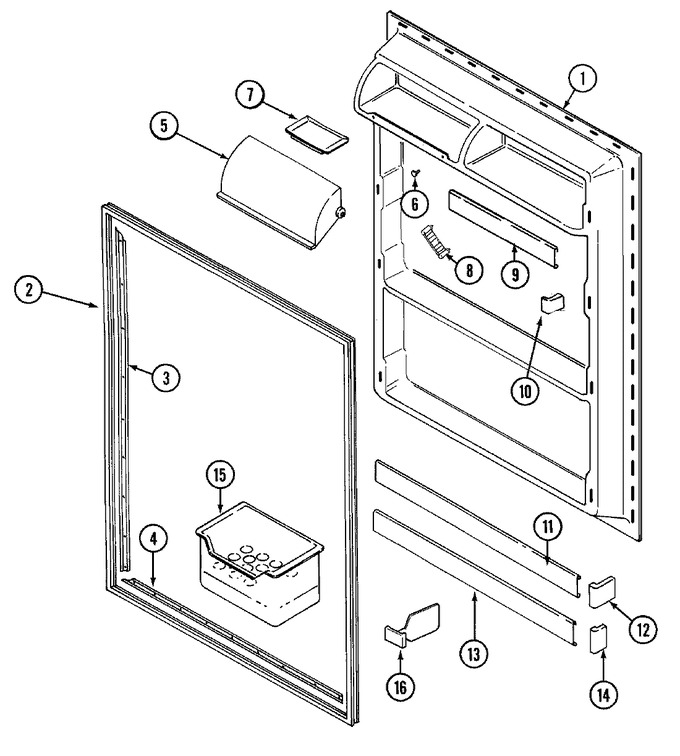

Diagram for GT15B7N3EV
