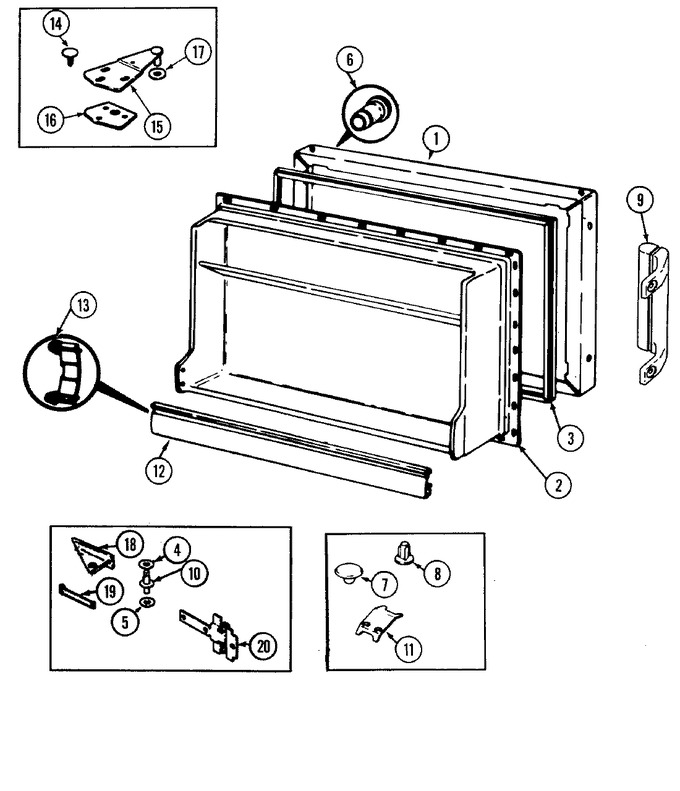

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72345-9-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69464-1 | Liner | 10 |
|
- | ||||
| 3 | 70025-9 | Gasket, Frz. Door | 10 |
|
- | ||||
| 4 | 67483-6 | Washer | 10 |
|
- | ||||
| 5 | 54233-2 | Washer | 10 |
|
- | ||||
| 6 | 29356-1 | Retainer, Nameplate | 10 |
|
- | ||||
| 7 | 67634-3 | Plug Button, Hinge Cup (alm) | 10 |
|
- | ||||
| 8 | 69480-4 | Plug Button (alm) | 10 |
|
- | ||||
| 9 | 65275-60 | Screw | 10 |
|
- | ||||
| 9 | 69168-5 | Handle, Door (alm) | 10 |
|
$ 114.87 | ||||
| 10 | 65275-48 | Screw | 10 |
|
- | ||||
| 10 | 60030-1 | Door Stop | 10 |
|
- | ||||
| 10 | 69517-1 | Pin, Center Hinge | 10 |
|
- | ||||
| 11 | 60123-2 | Clip, Stop Screw | 10 |
|
- | ||||
| 12 | WP61003045 | Trim (Replaces: 68832-3) | 10 |
|
$ 129.55 | ||||
| 13 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 14 | 56144-9 | Plug Button, Hinge Screw (alm) | 10 |
|
- | ||||
| 15 | 53709-20 | Hinge, Upper | 10 |
|
- | ||||
| 15 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 16 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 17 | 54233-7 | Washer | 10 |
|
- | ||||
| 18 | 69514-2 | Hinge, Center | 10 |
|
- | ||||
| 18 | 65275-55 | Screw | 10 |
|
- | ||||
| 19 | 69515-1 | Shim, Center Hinge | 10 |
|
- | ||||
| 20 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- |
