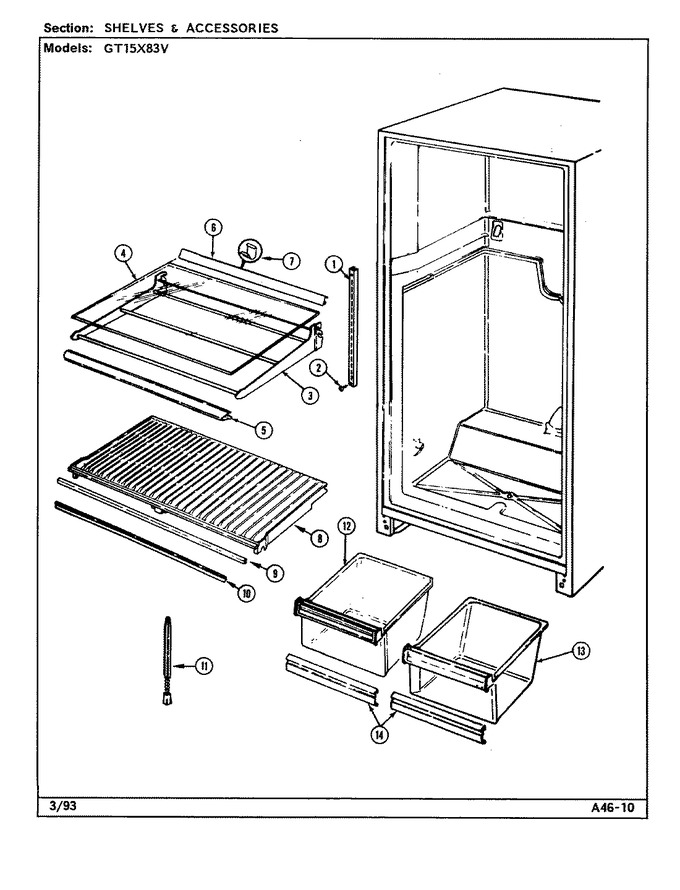

05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-7 | Rail, Shelf Support (lt) |
|
- | |||||
| 1 | 60096-8 | Rail, Shelf Support (rt) |
|
- | |||||
| 2 | 400037-28 | Screw |
|
- | |||||
| 3 | 60570-46 | Frame, Shelf |
|
- | |||||
| 4 | 68139-18 | Glass, Full Shelf |
|
- | |||||
| 5 | 60414-81 | Trim |
|
- | |||||
| 6 | 65276-54 | Trim, Shelf |
|
- | |||||
| 7 | 66333-1 | Clip, Shelf Trim |
|
- | |||||
| 8 | 66644-2 | Shelf, Crisper |
|
- | |||||
| 9 | 60454-9 | Trim, Crisper Shelf |
|
- | |||||
| 10 | 60148-4 | Seal, Crisper Shelf |
|
- | |||||
| 11 | 12001957 | Support, Crisper Shelf (Replaces: 66105-4) |
|
$ 3.35 | |||||
| 12 | 68221-639 | Pan, Crisper |
|
- | |||||
| 13 | 68221-640 | Pan, Crisper |
|
- | |||||
| 14 | 60132-134 | Trim, Pan |
|
- |
