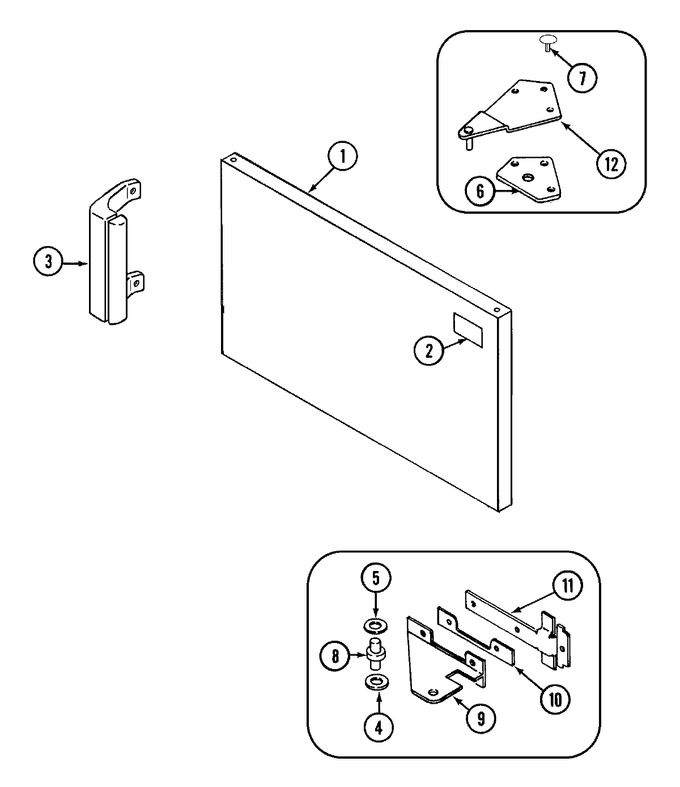

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-9-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	29356-1		Retainer, Nameplate	10	Appelez-nous	-
3	69168-4		Handle, Door (wht)	10			$ 69.03
3	65275-70		Screw	10	Appelez-nous	-
3	69922-1		Plug Button, Handle (wht)	10	Appelez-nous	-
4	54233-2		Washer	10	Appelez-nous	-
5	67483-6		Washer	10	Appelez-nous	-
6	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
7	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
8	69517-2		Pin, Center Hinge	10	Appelez-nous	-
9	65275-55		Screw	10	Appelez-nous	-
9	69514-3		Hinge	10	Appelez-nous	-
10	69515-1		Shim, Center Hinge	10	Appelez-nous	-
11	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
12	53709-24		Hinge, Upper	10	Appelez-nous	-
