SELECT A DIAGRAM

01 - Compressor


02 - Freezer Compartment


03 - Freezer Inner Door


04 - Freezer Outer Door


05 - Fresh Food Compartment


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Wiring Information

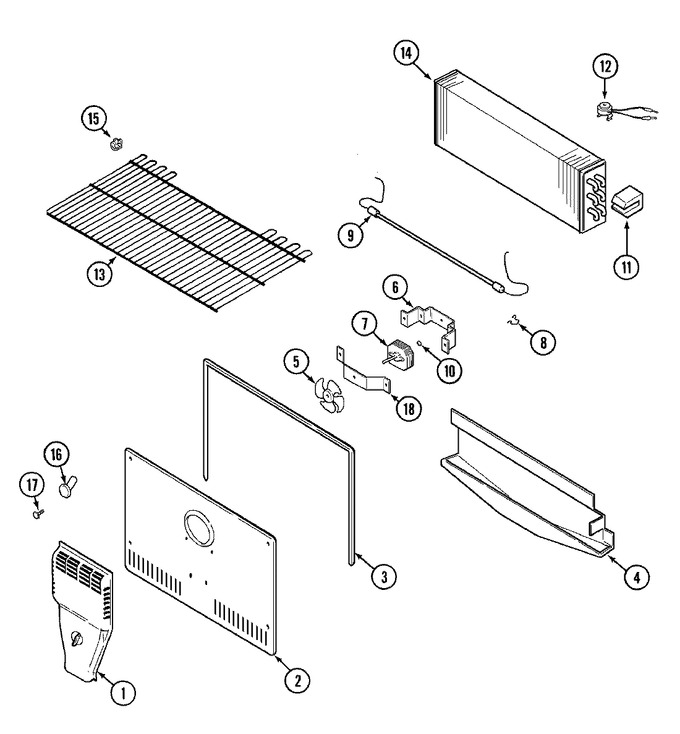

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002205		Tunnel, Air	11	Appelez-nous	-
2	61002233		Cover, Evaporator	11	Appelez-nous	-
2	WP489474		Screw   (Replaces: 61002429)	11		Immediately	$ 7.17
3	61004583		Seal, Evaporator Cover	11	Appelez-nous	-
3	61001967		Seal, Foam (ctr.)	11	Appelez-nous	-
4	61004832		Barrier, Foil	11	Appelez-nous	-
4	61001992		Tray, Drip	11	Appelez-nous	-
5	61001935		Blade, Evaporator Fan	11	Appelez-nous	-
6	WP489399		Screw   (Replaces: 61001885)	11			$ 6.26
6	61001930		Bracket, Evaporator Fan	11	Appelez-nous	-
7	61002107		Motor, Evaporator Fan	11	Appelez-nous	-
8	61004834		Clip, Defrost Heater	11	Appelez-nous	-
9	61005234		Heater, Defrost	11	Appelez-nous	-
10	61002235		Bushing, Evaporator Fan	11	Appelez-nous	-
11	61004835		Support, Evaporator (lt)	11	Appelez-nous	-
11	61004836		Support, Evaporator (rt)	11	Appelez-nous	-
12	WP61005254		Thermostat, Defrost   (Replaces: 61004833)	11		Immediately	$ 103.09
13	61002141		Shelf, Freezer	11	Appelez-nous	-
14	12001396		Evap/heat Exch. Assy. 15 & 17`	11			$ 233.00
15	61002142		Support, Frz. Shelf (frt)	11	Appelez-nous	-
15	61002143		Support, Frz. Shelf (rear)	11	Appelez-nous	-
16	61002109		Cap, Fill Tube	11	Appelez-nous	-
17	61005015		Plug Button, Ice Maker	11	Appelez-nous	-
18	WP489399		Screw   (Replaces: 61001885)	11			$ 6.26
18	61002234		Retainer, Evaporator Fan	11	Appelez-nous	-
19	61002914		Wire Harness, Frz.	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
