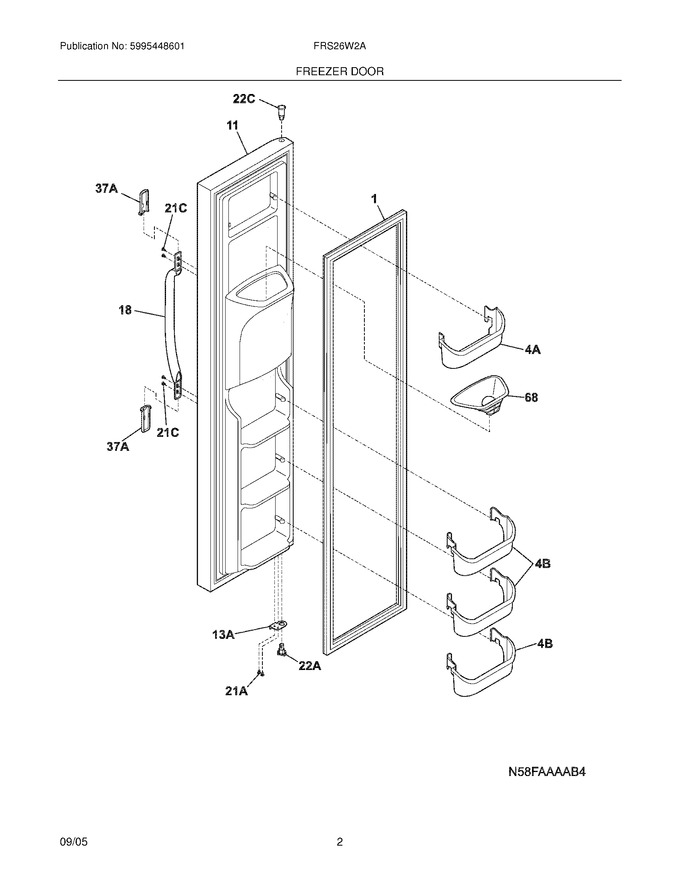

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240451811		Door-frzr,white ,complete Assy		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
68	241525101		Chute-ice				$ 82.25
13A	5303918455		Door Stop,white,frzr   (Replaces: 240537102)				$ 142.04
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37A	215870636		Trim-handle,2.47`` ,black ,w/satin Al Band				$ 76.91
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
F1	241569802		Gasket-frzr Door,white ,magnetic		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 85.69
NI	5303918256		Dispenser Heater Kit				$ 474.16
