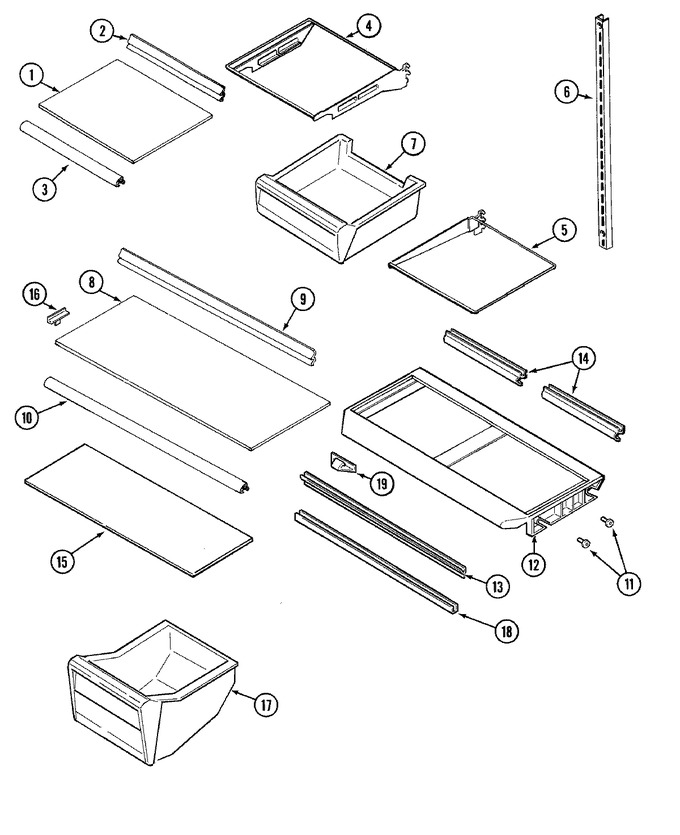

SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit-uki1000agx


09 - Shelves & Accessories


10 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002184		Glass, Shelf	10	Appelez-nous	-
2	61002119		Trim, Shelf (rear)----na	10	Appelez-nous	-
3	61002120		Trim, Shelf (front)	10	Appelez-nous	-
4	61003060		Frame, Shelf	12	Appelez-nous	-
4	61002182		Frame, Meat Pan Shelf	10	Appelez-nous	-
5	61002122		Frame, Shelf (rt)	10	Appelez-nous	-
5	61003061		Frame, Shelf	12	Appelez-nous	-
6	61002188		Rail, Cant. Shelf	10	Appelez-nous	-
6	400037-28		Screw	10	Appelez-nous	-
7	61002186		Pan, Meat	10	Appelez-nous	-
8	12001441		Kit, Glass Shelf (w/stops)	10	Appelez-nous	-
9	61002239		Trim, Shelf (rear)	10	Appelez-nous	-
10	61002240		Trim, Shelf (frt)	10	Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
11	67764-1		Support, Crisper Shelf	10			$ 8.05
12	61002679		Shelf, Crisper	10	Appelez-nous	-
13	61002129		Seal, Crisper (front)	10	Appelez-nous	-
14	61002130		Seal, Crisper (rear)	10	Appelez-nous	-
15	61002131		Glass, Crisper Shelf	10			$ 85.83
16	61002241		Stop, Shelf	10	Appelez-nous	-
17	61002185		Pan, Crisper	10	Appelez-nous	-
18	61002133		Support, Rail	10	Appelez-nous	-
19	61002132		Control, Humidity	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
