Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 65275-5 Screw 11 Appelez-nous -
1 61003055 Liner, F.f. Door 11 Appelez-nous -
2 61002160 Door, Dairy 11 Appelez-nous -
4 60066-1 Tray, Egg 11 Appelez-nous -
5 29936-2 Tray, Butter 11 Appelez-nous -
6 61002208 Front, Pick-off 11 Appelez-nous -
7 WP61003998 Seal, F.f. Door (wht)   (Replaces: 61002024) 11 Special Order $ 288.49

8 61002333 Retainer, Bottle 11 Appelez-nous -
9 61005474 Front, Pick-off   (Replaces: 61002207) 11 In-Stock Immediately $ 69.92

10 61002274 Organizer, Shelf 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

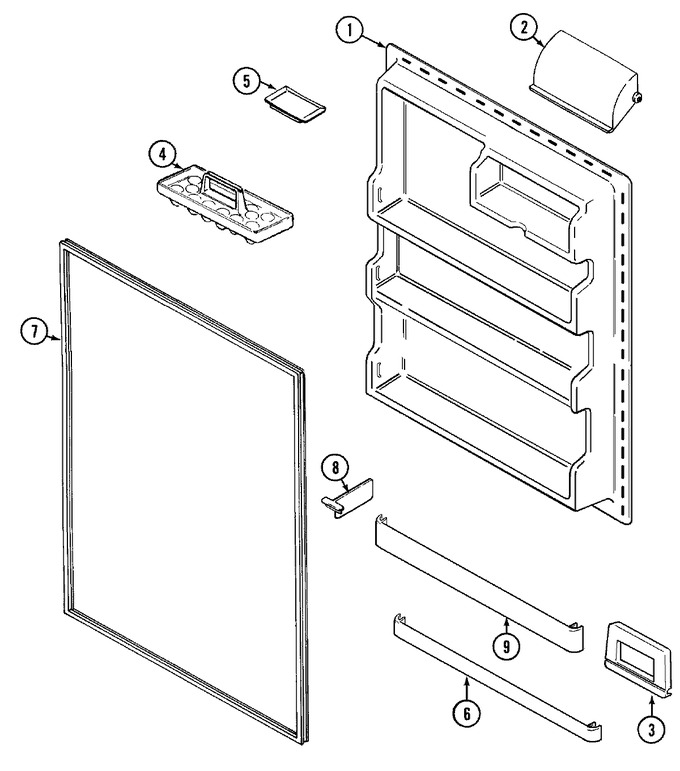

Diagram for GT1787PKCW
