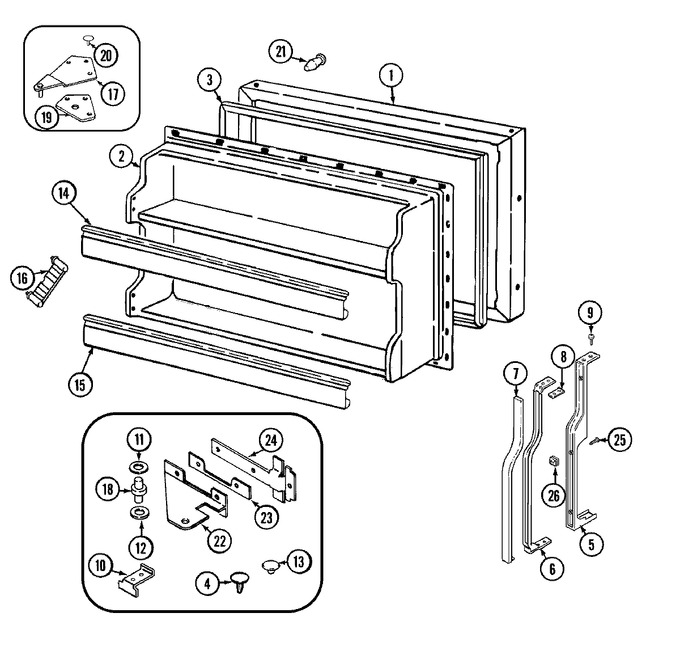

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-108-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	69466-1		Liner	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-3		Gasket	10	Appelez-nous	-
4	69480-2		Plug Button, Handle Hole (wht)	10	Appelez-nous	-
5	70050-2		Handle, Frz. Door (chr)	10	Appelez-nous	-
6	70052-3		Frame, Handle	10	Appelez-nous	-
7	70053-6		Insert, Handle (wht)	10	Appelez-nous	-
8	67934-1		Shim, Handle	10	Appelez-nous	-
9	65275-22		Screw	10	Appelez-nous	-
10	65275-48		Screw	10	Appelez-nous	-
10	69256-2		Stop, Door	10	Appelez-nous	-
11	67483-6		Washer	10	Appelez-nous	-
12	54233-1		Washer	10			$ 7.71
13	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
14	WP70111-108		Trim, Shelf   (Replaces: 70111-15)	10		Immediately	$ 104.35
15	WP70111-108		Trim, Shelf   (Replaces: 70111-16)	10		Immediately	$ 104.35
16	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
17	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
17	53709-24		Hinge, Upper	10	Appelez-nous	-
18	69517-2		Pin, Center Hinge	10	Appelez-nous	-
19	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
20	56144-14		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
21	29356-1		Retainer, Nameplate	10	Appelez-nous	-
22	65275-62		Screw	10	Appelez-nous	-
22	69514-2		Hinge, Center	10	Appelez-nous	-
23	69515-1		Shim, Center Hinge	10	Appelez-nous	-
24	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
24	65275-61		Screw	10	Appelez-nous	-
25	415033-1		Screw	10	Appelez-nous	-
26	69743-1		Grommet	10	Appelez-nous	-
