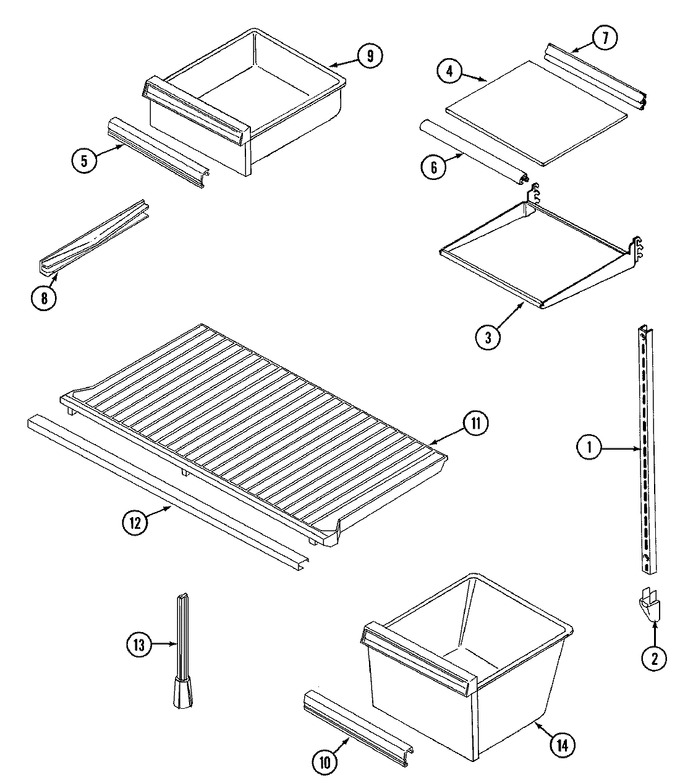

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
2	60340-1		End Cap, Center Rail	10	Appelez-nous	-
3	70106-2		Frame, Split Shelf	10	Appelez-nous	-
3	70106-1		Shelf, Split	10	Appelez-nous	-
4	68139-21		Glass, Meat Shelf	10	Appelez-nous	-
4	68139-15		Glass, Split Shelf	10	Appelez-nous	-
5	70108-2		Trim, Meat Pan (frt.)	10	Appelez-nous	-
6	70107-1		Trim, Shelf (front)	10	Appelez-nous	-
7	70110-1		Trim, Shelf (rear)	10	Appelez-nous	-
8	66813-1		Rail, Meat Pan (lt)	10	Appelez-nous	-
8	66814-1		Rail, Meat Pan (rt)	10	Appelez-nous	-
9	66636-125		Pan, Meat	10	Appelez-nous	-
10	70315-2		Trim, Pan Handle	10	Appelez-nous	-
11	66644-2		Shelf, Crisper	10	Appelez-nous	-
12	60454-9		Trim, Crisper Shelf	10	Appelez-nous	-
13	12001957		Support, Crisper Shelf   (Replaces: 66105-4)	10			$ 3.35
14	68221-651		Pan, Crisper	10	Appelez-nous	-
