SELECT A DIAGRAM

Diagram for 01 - Freezer Compartment
01 - Freezer Compartment

Diagram for 02 - Fresh Food Compartment
02 - Fresh Food Compartment

Diagram for 03 - Fresh Food Door
03 - Fresh Food Door

Diagram for 04 - Optional Ice Maker
04 - Optional Ice Maker

Diagram for 05 - Shelves & Accessories
05 - Shelves & Accessories

Diagram for 06 - Unit Compartment & System
06 - Unit Compartment & System

Diagram for 07 - Wiring Information
07 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
NI 15001199 Wiring Information Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

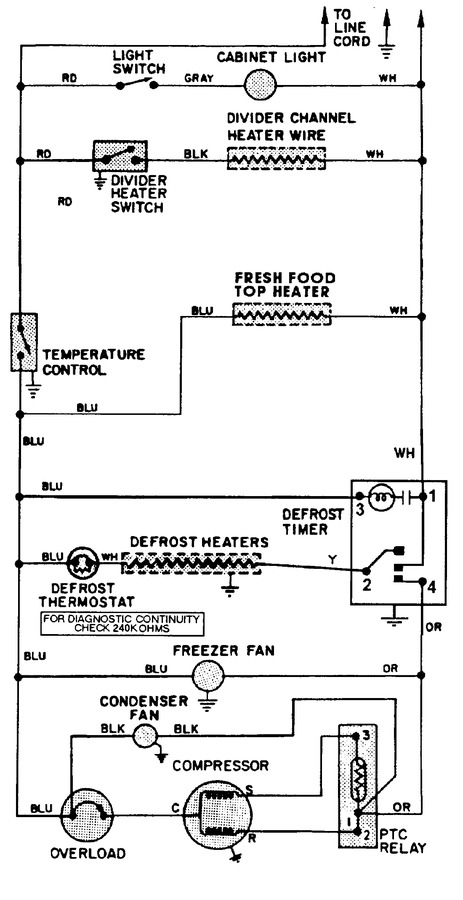

Diagram for GT17A83V
