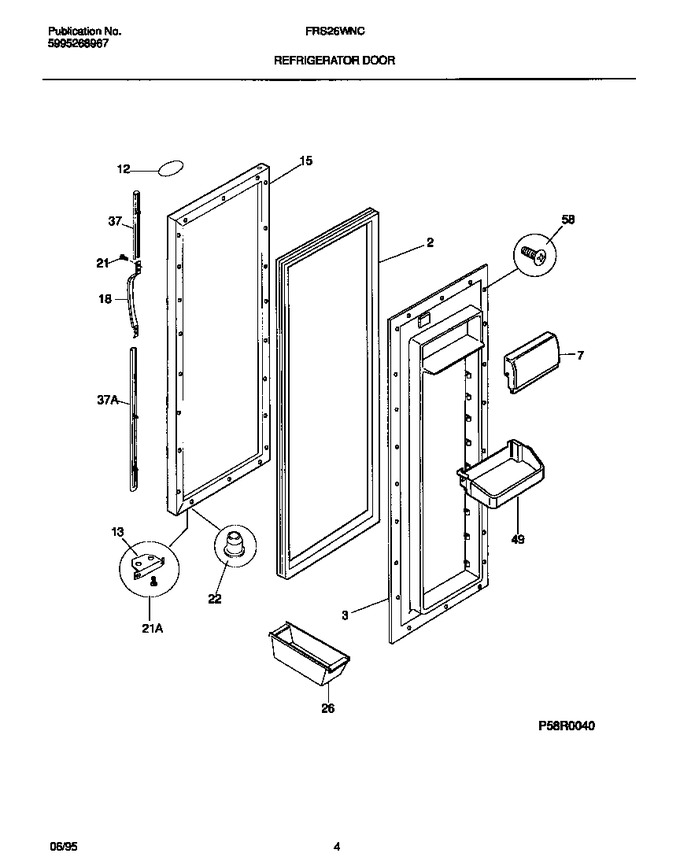

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303309825		Door-dairy				$ 174.41
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	218088801		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	215826401		Handle-door ,white				$ 192.78
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215867004		Trim-handle, 14.12``, White, Upper, W/chrome Band, And Sn		Appelez-nous	-
49	218592304		Bin-door, ``mongo``		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*09882	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215008601		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
37A	215867001		Trim-handle, 29.84``, White, Lower, W/chrome Band, And Snap Locks		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
