View Diagram in Separate Window
Print Part List

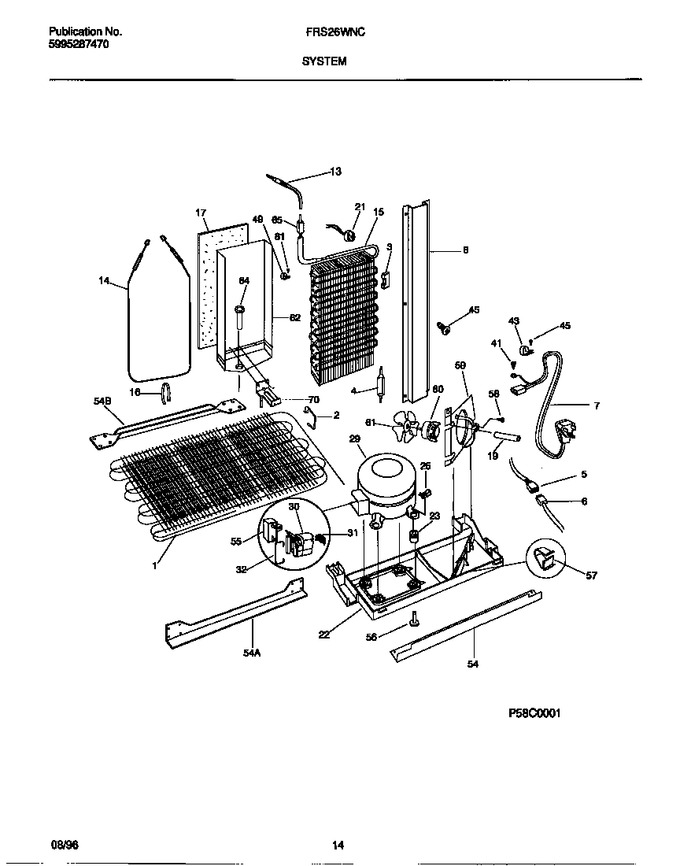

SELECT A DIAGRAM
01 - Cover
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice & Water Dispenser
09 - Container/drive
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 3 | 218679601 | Block-evap Coil, Styrofoam, (2) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 218541000) |
|
Immediately | $ 31.67 | ||||
| 6 | 218646200 | Harness-wiring, Machine Compt |
|
- | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 5303289033 | Cover-wiring |
|
- | |||||
| 13 | 215006701 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 218169802 | Heater-defrost (Replaces: 218657302) |
|
Immediately | $ 115.10 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303289496 | Insulator-evap |
|
$ 2.63 | |||||
| 19 | 218631200 | Tube, Rubber |
|
- | |||||
| 21 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 22 | 5303289030 | Base-compressor Mtg,(drain Pan) |
|
$ 213.57 | |||||
| 23 | 218513300 | Grommet-compr Mtg |
|
$ 42.53 | |||||
| 25 | 215014200 | Clip-compressor Mtg |
|
- | |||||
| 29 | 5304475102 | Compressor, R134a, W/ovld & Drier (Replaces: 5303917619) |
|
Immediately | $ 660.56 | ||||
| 30 | 216008900 | Starter-ptc |
|
- | |||||
| 31 | 5303308603 | Overload Protector |
|
$ 117.08 | |||||
| 32 | 215012000 | Wire-bale |
|
$ 2.63 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 49 | 215506900 | Bracket-evap Mtg |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 55 | 5304464438 | Capacitor-run (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 56 | 215014100 | Pin-compressor Mtg,(4) |
|
- | |||||
| 57 | 218247300 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw-cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16 |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501901 | Motor-condenser Fan |
|
$ 202.70 | |||||
| 62 | 215048701 | Trough-drain, W/shield Assy, & 17 Insulator |
|
- | |||||
| 64 | 5303289063 | Tube-drain |
|
- | |||||
| 65 | 5303289301 | Spacer-tube |
|
$ 35.39 | |||||
| 70 | 5303289041 | Bracket-evap/cvr Mtg |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *24848 | 5303917166 | Hot Tube Repair Kit, Service |
|
- | |||||
| 15A | 218691301 | Evaporator, R134a System |
|
$ 463.21 | |||||
| 15B | 3206414 | Tube-inlet (not Illustrated) |
|
$ 31.61 | |||||
| 1A | 215408100 | Condenser |
|
- | |||||
| 1B | 5303208866 | Spacer-tube (not Illustrated) |
|
$ 1.94 | |||||
| 1C | 5303289026 | Spacer, Tube (not Illustrated) |
|
- | |||||
| 43A | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 43B | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel (not Illustrated) |
|
- | |||||
| 43C | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45A | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 45B | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 45C | 5300141713 | Screw-clamp Mtg, Hex Washer Head, 8-32 X 0.625, Special(not Illustrated) |
|
- | |||||
| 5A | 218646100 | Harness-wiring, Main |
|
- | |||||
| 5B | 215004900 | Harness-wiring, Frzr Controls (not Illustrated) |
|
- | |||||
| 5C | 215005200 | Harness-wiring, Refr Controls (not Illustrated) |
|
- | |||||
| 5D | 218646000 | Harness-wiring, Filter Heater (not Illustrated) |
|
- | |||||
| 61A | 5303289032 | Blade-cond Fan |
|
- | |||||
| 61B | 215004700 | Nut, Speed (not Illustrated) |
|
$ 3.78 | |||||
| 61C | 215004800 | Grommet-silencer (not Illustrated) |
|
$ 52.50 |
