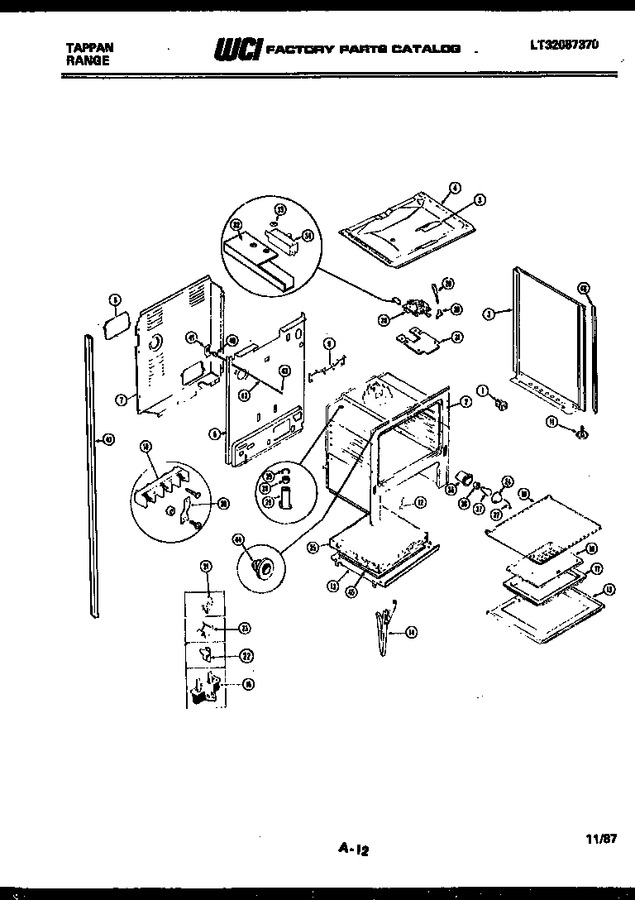

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051736 | Spacer-bdysde (8) |
|
- | |||||
| 3 | 3131257 | Pnl-bdysd-lh-wht |
|
- | |||||
| 3 | 3131217 | Pnl-bdysd-rh-blck |
|
- | |||||
| 3 | 3131227 | Pnl-bdysd-rh-wht |
|
- | |||||
| 3 | 3131221 | Pnl-bdysd-lh-blck |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3131567 | Back, Main |
|
- | |||||
| 7 | 3051400 | Shield-lwr Wall |
|
- | |||||
| 8 | 3051501 | Cvr-lwr Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 636M004P01 | Screw, Level (4) |
|
- | |||||
| 12 | 3131570 | Cvr. Hng. Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3051398 | Shield-wool Lwr |
|
- | |||||
| 14 | 3051414 | Chanl Dr. Hng. (2) |
|
- | |||||
| 15 | 3051104 | Bottom, Oven |
|
- | |||||
| 16 | 3051385 | Fuse-therm. Cutout |
|
- | |||||
| 17 | 539T010F01-86 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert-broilr Pan |
|
- | |||||
| 19 | 709T031P01 | Terminal Block |
|
- | |||||
| 20 | 711T048P01 | Grnd Strap |
|
- | |||||
| 21 | 3131295 | Clip-therm. Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drwr (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 3051298 | Glass-ovn Lite Lens |
|
- | |||||
| 25 | 3051429 | Insul-btm |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3131104 | Wire-glass Retnr |
|
- | |||||
| 28 | 3015361 | Latch Door |
|
- | |||||
| 29 | 3051473 | Handle, Latch |
|
- | |||||
| 30 | 358T158S02 | Knob, Latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield-bi Mtl Catch |
|
- | |||||
| 33 | 3051733 | Fstnr-push On (3) |
|
- | |||||
| 34 | 3051734 | Sw.-latching |
|
- | |||||
| 35 | 3131363 | Tube-ov. Lt. |
|
- | |||||
| 36 | 3051735 | Socket-ov. Lt. |
|
- | |||||
| 37 | 374T018P05 | Lite Bulb, Oven |
|
- | |||||
| 38 | 3051737 | Filter-catalyst |
|
- | |||||
| 39 | 612T079P01 | Retain, Catalyst |
|
- | |||||
| 40 | 695T128P04 | Switch, Door |
|
- | |||||
| 41 | 3131289 | Brkt-lt Sw. |
|
- | |||||
| 42 | 3051495 | Rod, Light |
|
- | |||||
| 43 | 3051251 | Cover, Rod |
|
- | |||||
| 44 | 3051731 | Btn-remot Lt Sw. |
|
- | |||||
| 45 | 3051430 | Shield-heat Lwr |
|
- | |||||
| 46 | 3051326 | Trim-vert. Bdysd (2) |
|
- | |||||
| 27A | 3131304 | Insul - Wrap (non-illustrated) |
|
- | |||||
| 27B | 3131303 | Insul - Back (non-illustrated) |
|
- | |||||
| 27C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27D | 636T163P01 | Screw-hng Mtg (6) (non-illustrated) |
|
- | |||||
| 27E | 479T069P41 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 30A | 636T144P01 | Scrw-set Latch Knob (non-illustrated) |
|
- | |||||
| 45A | 3131305 | Insul.-touch (non-illustrated) |
|
- |
