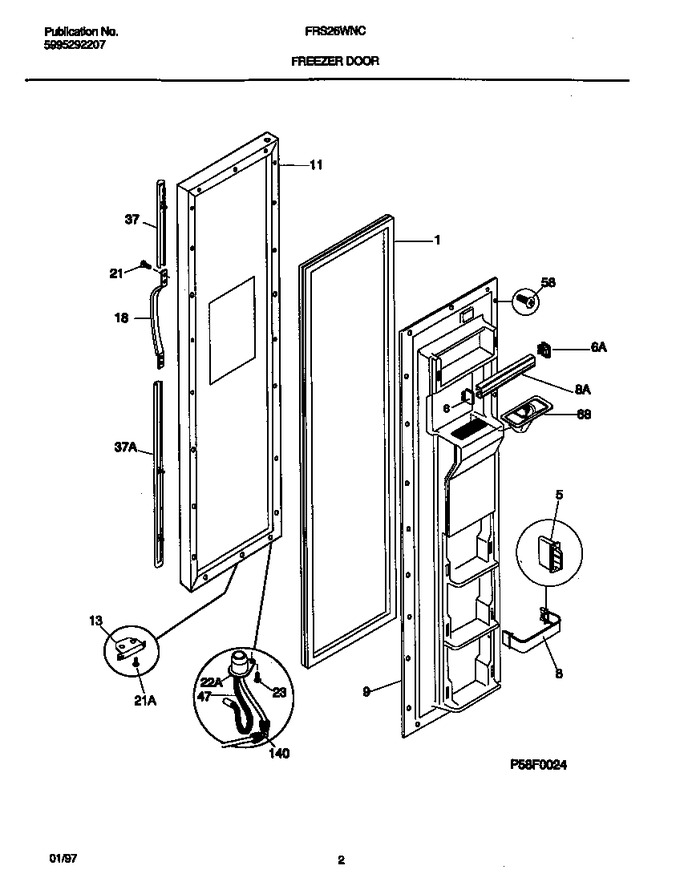

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303297814		Support-door Rack, Rh				$ 52.50
6	5303297813		Support-door Rack, Lh				$ 49.77
8	215776801		Rack-door, W/end Caps		Appelez-nous	-
8	215474044		Rack-door		Appelez-nous	-
9	218510401		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917671		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215826401		Handle-door ,white				$ 192.78
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867055		Trim-handle, White, Upper, W/chrome Band, And Snap Lock				$ 51.14
37	215867053		Trim-handle, White, Lower, W/chrome Band, And Snap Locks				$ 70.72
37	218676001		Band-decorative, Chrome (not Illustrated)				$ 36.17
47	218741300		Harness-wiring, Frzr Door				$ 117.94
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
68	218495200		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*47040	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*47041	215782300		Lock-handle Trim,snap-in				$ 34.49
*47042	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*47043	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
