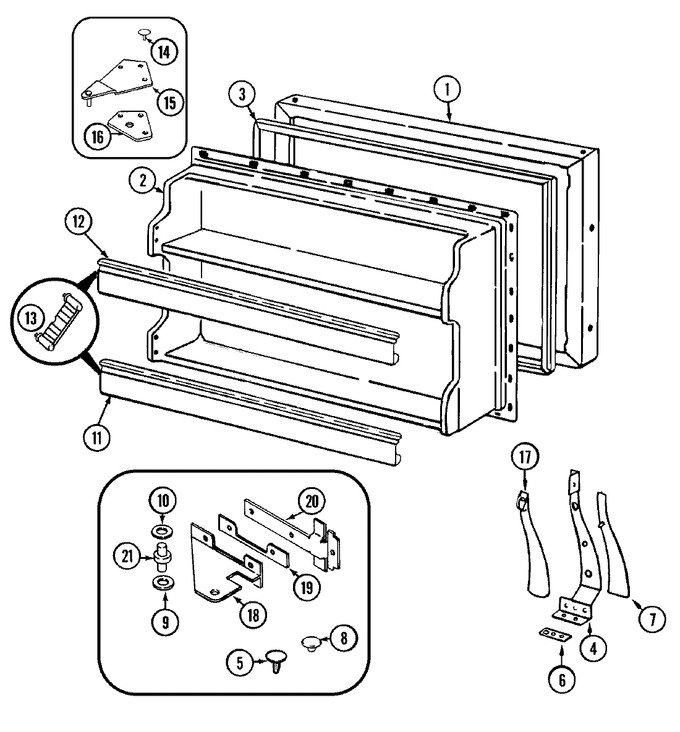

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72345-10-WW | Panel, Frz. Door (wht) | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69446-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 3 | 70025-3 | Gasket | 10 |
|
- | ||||
| 4 | 69300-1 | Handle, Door | 10 |
|
- | ||||
| 5 | 55782-10 | Plug Button, Hdle & Door Stop | 10 |
|
- | ||||
| 6 | 69301-1 | Shim, Handle | 10 |
|
- | ||||
| 7 | 68959-1 | Insert | 10 |
|
- | ||||
| 8 | 67634-2 | Plug Button, Hinge Cup (wht) | 10 |
|
- | ||||
| 9 | 54233-2 | Washer | 10 |
|
- | ||||
| 10 | 67483-6 | Washer | 10 |
|
- | ||||
| 11 | 56209-3 | Clip, Stop Screw | 10 |
|
- | ||||
| 11 | WP61003045 | Trim, Door Shelf (Replaces: 65151-95) | 10 |
|
$ 129.55 | ||||
| 12 | WP61003045 | Trim, Door Shelf (Replaces: 65151-349) | 10 |
|
$ 129.55 | ||||
| 12 | 60123-2 | Clip, Stop Screw | 10 |
|
- | ||||
| 13 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 14 | 56144-14 | Plug Button, Upper Hinge (wht) | 10 |
|
- | ||||
| 15 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 15 | 53709-20 | Hinge, Upper | 10 |
|
- | ||||
| 15 | 54233-1 | Washer | 10 |
|
$ 7.71 | ||||
| 16 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 17 | 60445-3 | Insert, Handle (back) | 10 |
|
- | ||||
| 18 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 18 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 19 | 69515-1 | Shim, Center Hinge | 10 |
|
- | ||||
| 20 | 69419-1 | Tapping Plate, Center Hinge | 10 |
|
- | ||||
| 21 | 65275-48 | Screw | 10 |
|
- | ||||
| 21 | 29356-1 | Retainer, Nameplate | 10 |
|
- | ||||
| 21 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 21 | 69517-1 | Pin, Center Hinge | 10 |
|
- |
