01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker


06 - Shelves & Accessories


07 - Unit Compartment & System

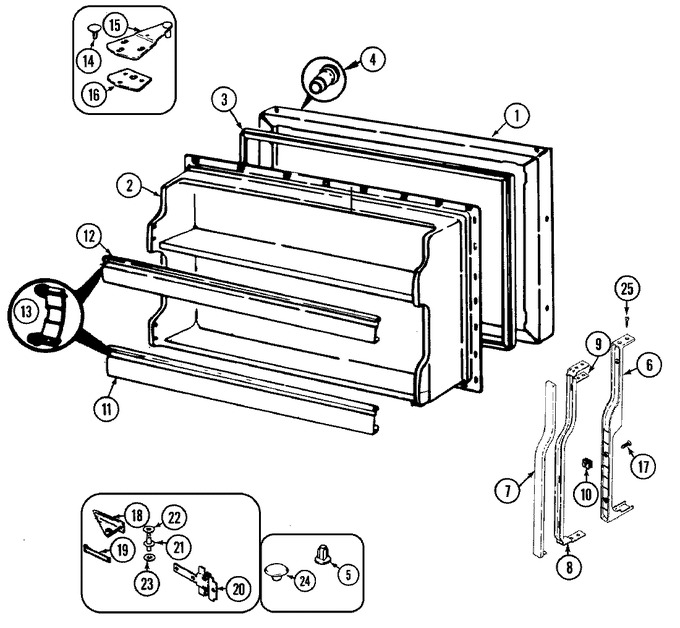

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-108-AM		Panel, Frz. Door (alm)	10	Appelez-nous	-
2	69466-1		Liner	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-3		Gasket	10	Appelez-nous	-
4	29356-1		Retainer, Nameplate	10	Appelez-nous	-
5	67678-3		Plug Button, Handle Top (alm)	10	Appelez-nous	-
6	61001137		Handle, Frz. Door (alm)	11	Appelez-nous	-
6	70050-2		Handle, Frz. Door (chr)	10	Appelez-nous	-
7	70053-5		Insert, Handle Frz.	10	Appelez-nous	-
8	65275-22		Screw	10	Appelez-nous	-
8	70052-3		Frame, Handle	10	Appelez-nous	-
9	67934-1		Shim, Handle	10	Appelez-nous	-
10	69743-1		Grommet	10	Appelez-nous	-
11	WP70111-108		Trim, Shelf   (Replaces: 70111-69)	10		Immediately	$ 104.35
12	WP70111-108		Trim, Shelf (21 15/16``)   (Replaces: 70111-70)	10		Immediately	$ 104.35
13	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
14	56144-9		Plug Button, Hinge Screw (alm)	10	Appelez-nous	-
15	53709-20		Hinge, Upper	10	Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
16	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
17	415033-1		Screw	10	Appelez-nous	-
18	69514-2		Hinge, Center	10	Appelez-nous	-
18	65275-55		Screw	10	Appelez-nous	-
19	69515-1		Shim, Center Hinge	10	Appelez-nous	-
20	68377-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
21	69517-2		Pin, Center Hinge	10	Appelez-nous	-
22	67483-6		Washer	10	Appelez-nous	-
23	54233-2		Washer	10	Appelez-nous	-
24	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
24	69256-2		Stop, Door	10	Appelez-nous	-
24	65275-48		Screw	10	Appelez-nous	-
25	W10856122		Screw   (Replaces: 65275-65)	10			$ 6.98
