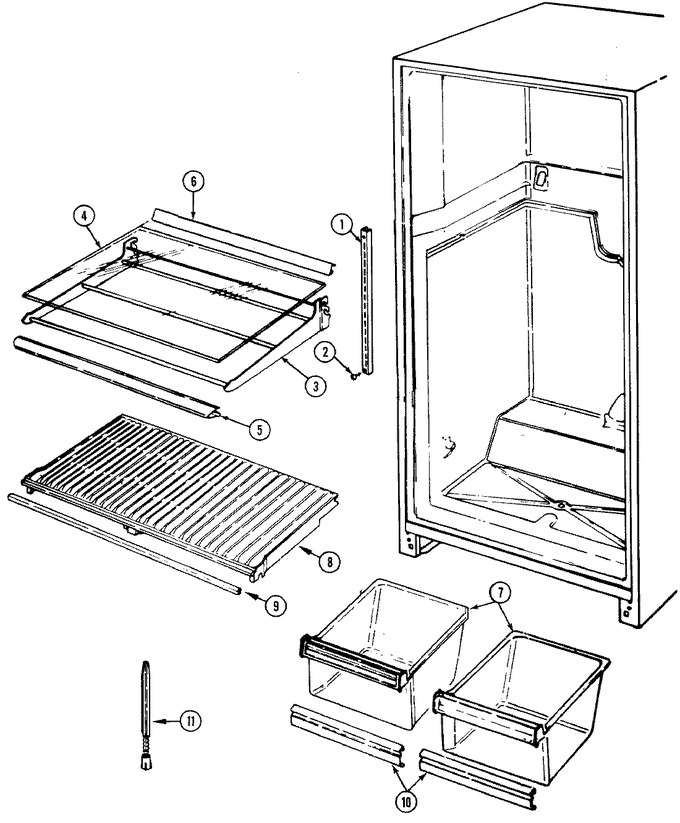

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 70106-3 | Frame, Full Shelf | 10 |
|
- | ||||
| 4 | 68139-18 | Glass, Full Shelf | 10 |
|
- | ||||
| 5 | 70107-6 | Trim, Shelf (front) | 10 |
|
- | ||||
| 6 | 70110-6 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 7 | 68221-632 | Pan, Cripser | 10 |
|
- | ||||
| 8 | 66834-1 | Shelf, Crisper | 10 |
|
- | ||||
| 9 | 60454-9 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 10 | 70315-24 | Trim, Meat Pan | 10 |
|
- | ||||
| 11 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | 10 |
|
$ 3.35 |
