Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303309825		Door-dairy				$ 174.41
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
12	215008601		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215868901		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218025303		Handle End, Black		Appelez-nous	-
18	215339618		Handle-door, Black		Appelez-nous	-
21	215836900		Screw-door Stop Mtg, Truss Head-cr, 10 Ab X 1/2		Appelez-nous	-
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215268108		Trim-handle, 15.88``, Black, Upper		Appelez-nous	-
37	215268110		Trim-handle, 31.46``, Black, Lower		Appelez-nous	-
49	218439616		Bin-door, With Trim		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
*36963	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*36964	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

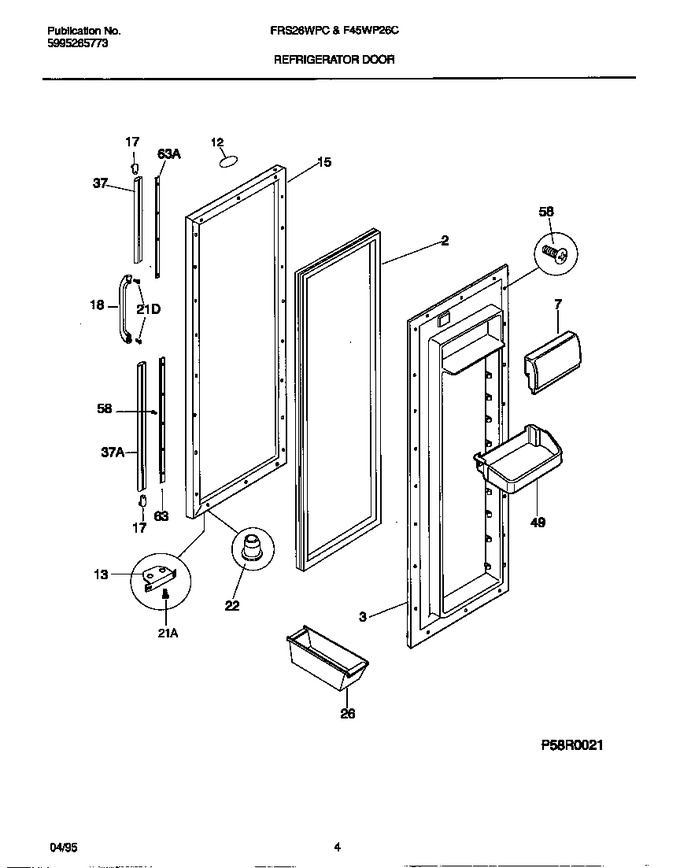

    View Diagram in Separate Window       Print Part List
