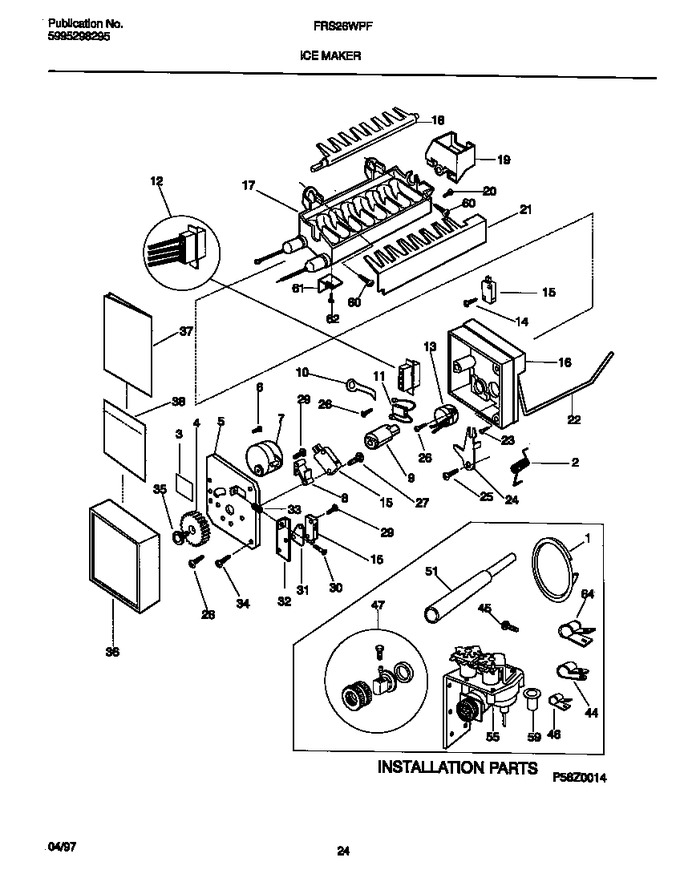

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308010366		Tube-water Inlet, 93``, Plastic, Cut-to-size				$ 17.44
2	3206348		Spring, Shut-off Arm		Appelez-nous	-
3	3206299		Plate-i.d.		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	3206303		Plate-mounting				$ 47.41
6	3206305		Screw-ground Wire, 8-32 X 1/4		Appelez-nous	-
7	5303918277		Motor-ice Maker   (Replaces: 3206306)			Immediately	$ 96.11
8	3206312		Spacer-holding Sw		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
10	3206315		Clamp				$ 35.33
11	3206319		Thermal Cutoff Assy				$ 48.72
13	3206322		Thermostat Assy,ice Maker				$ 130.41
14	3206323		Screw-switch Mtg, 4-24 X 3/4, Sw/supt		Appelez-nous	-
15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
16	3206326		Support		Appelez-nous	-
17	241798231		Mold-ice Maker, With Heater, Radius Cube   (Replaces: 5303320545)			Immediately	$ 200.97
18	3206328		Ejector		Appelez-nous	-
19	3206330		Bearing & Inlet		Appelez-nous	-
20	3206331		Screw, 8-18 X 3/8, (2)		Appelez-nous	-
21	3206332		Ice Stripper		Appelez-nous	-
22	3206333		Arm, Shut-off		Appelez-nous	-
23	3206334		Screw-sup/mold Body, 8-18 X 1.000, (4)		Appelez-nous	-
24	5304456675		Lever-arm   (Replaces: 3206335)				$ 66.63
25	3206336		Screw-arm Levr/sprt, 8-18 X 9/16		Appelez-nous	-
26	3206337		Screw-thermo/sprt, 4-24 X 3/8, (4)		Appelez-nous	-
27	3206338		Screw-sw & Spcr/plate, 4-40 X 1.00, (2)		Appelez-nous	-
28	3206339		Screw-timing Stop, 4-40 X 3/8		Appelez-nous	-
29	3206340		Screw-mtr & Sw/plate, 4-40 X 3/4, (4)		Appelez-nous	-
30	3206341		Screw-timing, 8-32 X 1.00		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	3206344		Spring		Appelez-nous	-
34	3206345		Screw - Mtg Plate / Sprt, 8-18 X 7/16, (3)		Appelez-nous	-
35	3206346		Screw - Gear / Cam, 6-20 X 0.437		Appelez-nous	-
36	3206347		Cover-complete				$ 29.24
37	5303320544		Data Sheet, Ice Maker		Appelez-nous	-
38	5303207445		Envelope-data Sheet		Appelez-nous	-
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303001193		Clamp-inlet Tube, Metal				$ 16.30
47	5308000205		Adapter-water Sply				$ 79.01
51	215811600		Tube-fill		Appelez-nous	-
55	218720500		Valve-water, Dual Solenoid, 115v				$ 203.44
59	5303001191		Sleeve-tube Insert				$ 6.72
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
61	218721500		Bracket-leveling, Ice Maker				$ 73.00
62	218737900		Screw-im Mtg Brkt, Hex Head, 8-32 X 3/8		Appelez-nous	-
64	5304455846		Clamp-copper Tube, Steel   (Replaces: 5303001549)				$ 10.63
*79534	215290100		Screw-valve, Hx Hd-slot Wshr, 12-24 X 3/4				$ 6.35
12A	3206349		Harness-wiring, Im Internal, With Plug				$ 130.20
12B	3206321		Connector Plug, Wiring Harness				$ 29.82
