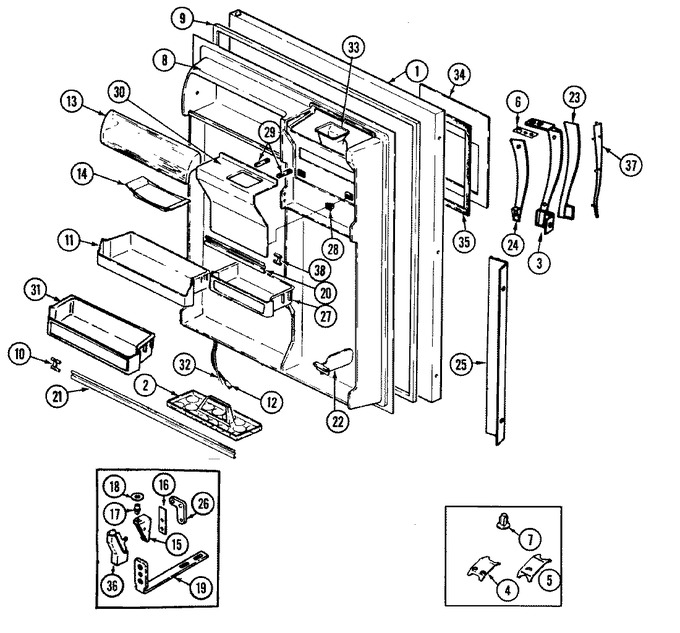

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-3-AM | Panel, Outer (alm) |
|
- | |||||
| 2 | 60066-1 | Tray, Egg |
|
- | |||||
| 3 | 69300-1 | Handle, Door |
|
- | |||||
| 4 | 65275-57 | Screw |
|
- | |||||
| 4 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 5 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 6 | 69301-1 | Shim, Handle |
|
- | |||||
| 7 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 8 | 69448-3 | Liner, F.f. Door |
|
- | |||||
| 8 | 65275-5 | Screw |
|
- | |||||
| 9 | 70025-6 | Gasket, F.f. Door (wht) |
|
$ 155.30 | |||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 11 | 69872-8 | Shelf, Pick-off |
|
- | |||||
| 12 | 69862-1 | Wire Harness, Door To Main |
|
- | |||||
| 12 | 69865-1 | Wire Harness, Door |
|
- | |||||
| 13 | 69058-3 | Door, Dairy |
|
- | |||||
| 14 | 29936-2 | Tray, Butter |
|
- | |||||
| 15 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 15 | 69516-1 | Hinge, Lower (blk) |
|
- | |||||
| 16 | 69510-1 | Shim, Lower Hinge |
|
- | |||||
| 17 | 70060-1 | Pin, Hinge |
|
- | |||||
| 18 | 67483-3 | Washer, Door Spacer |
|
Immediately | $ 45.86 | ||||
| 19 | 65275-48 | Screw |
|
- | |||||
| 19 | 69511-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 20 | 68833-6 | Trim, Door |
|
- | |||||
| 21 | WP61003045 | Shelf Trim (Replaces: 68832-21) |
|
$ 129.55 | |||||
| 22 | 69759-2 | Organizer |
|
- | |||||
| 23 | 68036-4 | Insert (alm) |
|
- | |||||
| 24 | 60580-6 | Insert |
|
- | |||||
| 24 | 65275-53 | Screw |
|
- | |||||
| 25 | 60453-32 | Trim, F.f. Door (alm) |
|
- | |||||
| 26 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 26 | 65275-59 | Screw |
|
- | |||||
| 27 | 69872-7 | Shelf, Pick-off |
|
- | |||||
| 28 | 65184-3 | Latch |
|
- | |||||
| 29 | 52077-26 | Seal |
|
- | |||||
| 30 | 69535-1 | Insulation, Fountain Perimeter |
|
- | |||||
| 30 | 69626-2 | Panel, Access |
|
- | |||||
| 30 | 68781-1 | Insulation, Fountain Back |
|
- | |||||
| 31 | 69872-9 | Shelf, Pick-off |
|
- | |||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-11) |
|
$ 126.83 | |||||
| 33 | 69541-1 | Chute, Ice |
|
- | |||||
| 34 | 68594-6 | Escutcheon (alm) |
|
- | |||||
| 35 | 95121-1 | Tape, Escutcheon |
|
- | |||||
| 36 | 68978-1 | Cover, Lower Hinge (blk) |
|
- | |||||
| 36 | 65275-47 | Screw, Hinge Cover (black) |
|
- | |||||
| 37 | 68048-5 | Insert, Vinyl |
|
- | |||||
| 38 | 69615-1 | Holder, Beverage |
|
- | |||||
| 38 | 65246-1 | Retainer |
|
$ 5.04 |
