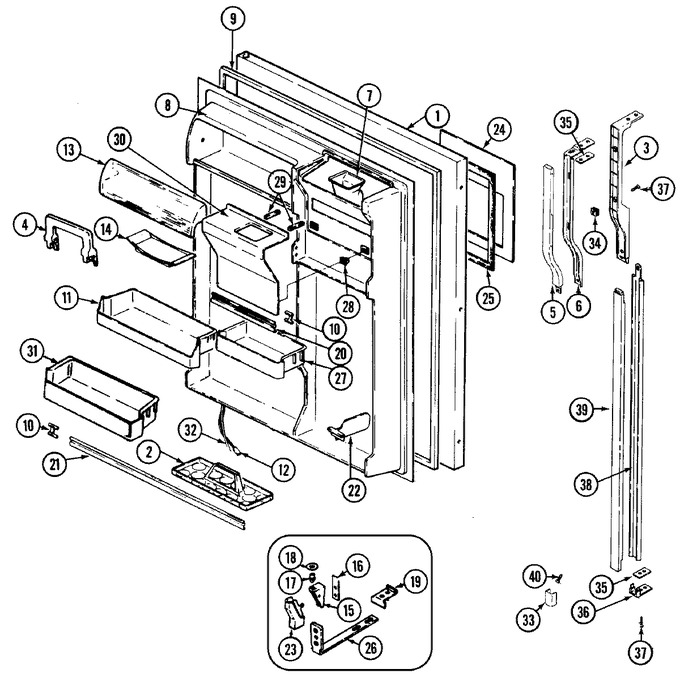

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 55782-6 | Plug Button (almond) | 10 |
|
- | ||||
| 1 | 72449-6-AM | Panel, F.f. Door (alm) | 10 |
|
- | ||||
| 2 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 3 | 70051-2 | Handle, F.f. Door | 10 |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 4 | 70112-1 | Retainer, Bottle | 10 |
|
- | ||||
| 5 | 70053-17 | Insert, Handle (alm)----na | 10 |
|
- | ||||
| 6 | 70052-1 | Frame, Handle | 10 |
|
- | ||||
| 7 | 69541-1 | Chute, Ice | 10 |
|
- | ||||
| 8 | 65275-5 | Screw | 10 |
|
- | ||||
| 8 | 69448-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 9 | 70025-6 | Gasket, F.f. Door (wht) | 10 |
|
$ 155.30 | ||||
| 10 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 11 | 69872-8 | Shelf, Pick-off | 10 |
|
- | ||||
| 12 | 69865-7 | Wire Harness, Door | 10 |
|
- | ||||
| 13 | 69058-23 | Door, Dairy | 10 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 15 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 15 | 69516-1 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 16 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 17 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 18 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 19 | 65275-48 | Screw | 10 |
|
- | ||||
| 19 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 20 | WP70111-108 | Trim, Shelf (13 1/2``) (Replaces: 70111-117) | 10 |
|
Immediately | $ 104.35 | |||
| 21 | WP70111-108 | Trim, Shelf (24 7/8``) (Replaces: 70111-131) | 10 |
|
Immediately | $ 104.35 | |||
| 22 | 69759-2 | Organizer | 10 |
|
- | ||||
| 23 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 23 | 65275-47 | Screw, Hinge Cover (black) | 10 |
|
- | ||||
| 24 | 68594-6 | Escutcheon (alm) | 10 |
|
- | ||||
| 25 | 95121-1 | Tape, Escutcheon | 10 |
|
- | ||||
| 26 | 65275-66 | Screw (no.10 X 1/2``) | 10 |
|
- | ||||
| 26 | 414012-1 | Screw | 10 |
|
- | ||||
| 26 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 27 | 69872-7 | Shelf, Pick-off | 10 |
|
- | ||||
| 28 | 65184-3 | Latch | 10 |
|
- | ||||
| 29 | 52077-26 | Seal | 10 |
|
- | ||||
| 30 | 69534-1 | Insulation | 10 |
|
- | ||||
| 30 | 69535-1 | Insulation, Fountain Perimeter | 10 |
|
- | ||||
| 30 | 69626-1 | Panel, Access | 10 |
|
- | ||||
| 31 | 69872-11 | Shelf, Pick-off | 10 |
|
- | ||||
| 32 | WPW10426709 | Tubing, Fountain To Coil (Replaces: 67187-27) | 10 |
|
$ 126.83 | ||||
| 33 | 61001128 | End Cap, Handle (alm) | 10 |
|
- | ||||
| 34 | 69743-1 | Grommet | 10 |
|
- | ||||
| 35 | 67934-1 | Shim, Handle | 10 |
|
- | ||||
| 36 | 70056-1 | End Cap | 10 |
|
- | ||||
| 37 | 415033-1 | Screw | 10 |
|
- | ||||
| 38 | 70055-2 | Trim, Handle Ext. | 10 |
|
- | ||||
| 39 | 70054-5 | Insert, Ext. (alm) | 10 |
|
- | ||||
| 40 | 65275-37 | Screw, Handle | 10 |
|
- |
