01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit-uki1000agx


09 - Shelves & Accessories


10 - Supplemental Information


11 - Wiring Information

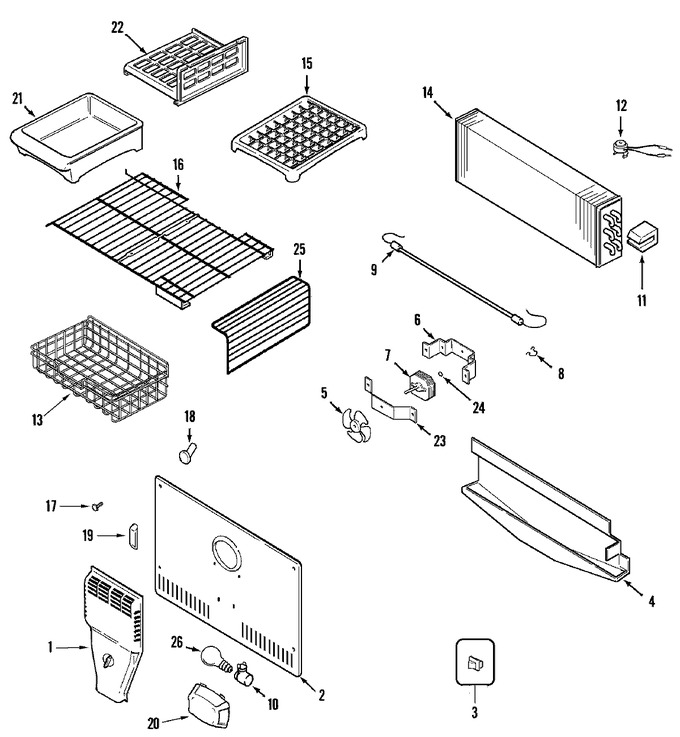

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005596		Tunnel, Air	13	Appelez-nous	-
2	61002354		Cover, Evaporator	13	Appelez-nous	-
2	61001952		Plug Button, Evap. Cover	13	Appelez-nous	-
2	61005920		Seal, Foam (ctr)	13	Appelez-nous	-
2	WP489474		Screw   (Replaces: 61002429)	13		Immediately	$ 7.17
3	61006157		Switch, Light	13			$ 19.62
4	61004832		Barrier, Foil	13	Appelez-nous	-
4	61004838		Tray, Drip	13	Appelez-nous	-
5	61001935		Blade, Evaporator Fan	13	Appelez-nous	-
6	61001930		Bracket, Evaporator Fan	13	Appelez-nous	-
6	WP489399		Screw   (Replaces: 61005240)	13			$ 6.26
7	61005387		Motor, Evaporator Fan	13	Appelez-nous	-
8	61006173		Clip, Defrost Heater	13			$ 24.32
9	61005420		Heater, Defrost	13	Appelez-nous	-
10	67002218		Receptacle, Bulb	13	Appelez-nous	-
11	61006174		Support, Evaporator (lt)	13	Appelez-nous	-
11	61006175		Support, Evaporator (rt)	13	Appelez-nous	-
12	WP61005254		Thermostat, Defrost   (Replaces: 61005254)	13		Immediately	$ 103.09
13	61002355		Basket, Frz.	13	Appelez-nous	-
13	61002356		Clip, Basket	13	Appelez-nous	-
14	12001397		Evap/heat Exch. Assy. 19`	13			$ 295.90
15	WP61002140		Tray, Ice   (Replaces: 61002140)	13			$ 18.23
16	61002383		Shelf, Frz.	13	Appelez-nous	-
17	61005015		Plug Button, Ice Maker	13	Appelez-nous	-
18	61002026		Cap, Fill Tube	13	Appelez-nous	-
19	61002027		Cap, I/m Wire Harness	13	Appelez-nous	-
20	61002272		Shield, Light	13	Appelez-nous	-
21	61002267		Pan, Ice	13	Appelez-nous	-
22	61002268		Shelf, Ice Tray	13	Appelez-nous	-
22	WPW10348409		Screw (no.8 Ab)   (Replaces: 61004314)	13		Immediately	$ 6.98
22	400019-1		Screw	13	Appelez-nous	-
23	WP489399		Screw   (Replaces: 61005240)	13			$ 6.26
23	61002234		Retainer, Evaporator Fan	13	Appelez-nous	-
24	61002235		Bushing, Evaporator Fan	13	Appelez-nous	-
25	61002270		Leg, Frz. Shelf	13	Appelez-nous	-
26	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	13		Immediately	$ 10.58
27	61005102		Wire Harness, Frz.	13	Appelez-nous	-
