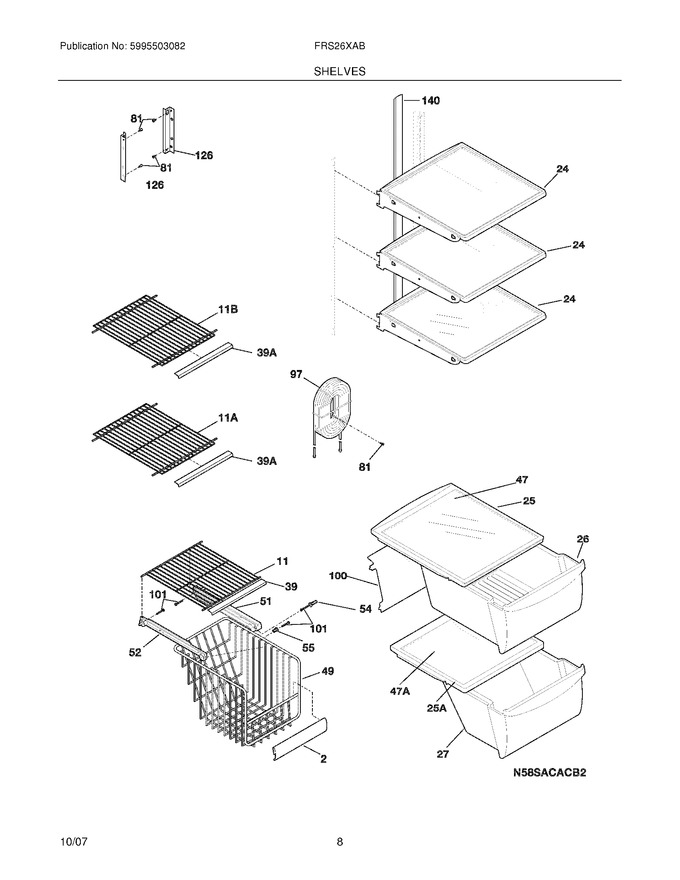

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434604		Trim-basket		Appelez-nous	-
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355226)				$ 170.63
25	240350702		Cover-crisper Pan,upper			Immediately	$ 41.92
26	240351011		Pan-crisper,upper		Appelez-nous	-
27	240351209		Pan-crisper,lower		Appelez-nous	-
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
47	240350649		Insert-pan Cover,glass   (Replaces: 240350694)			Immediately	$ 123.89
49	240530402		Basket-sliding				$ 232.16
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
97	240453002		Water Tank Assy,coiled Tubing ,rear Filter		Appelez-nous	-
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 73.57
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	241657512		Shelf-freezer,fixed Wire   (Replaces: 240338702)				$ 16.87
11B	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
39A	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48
