SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

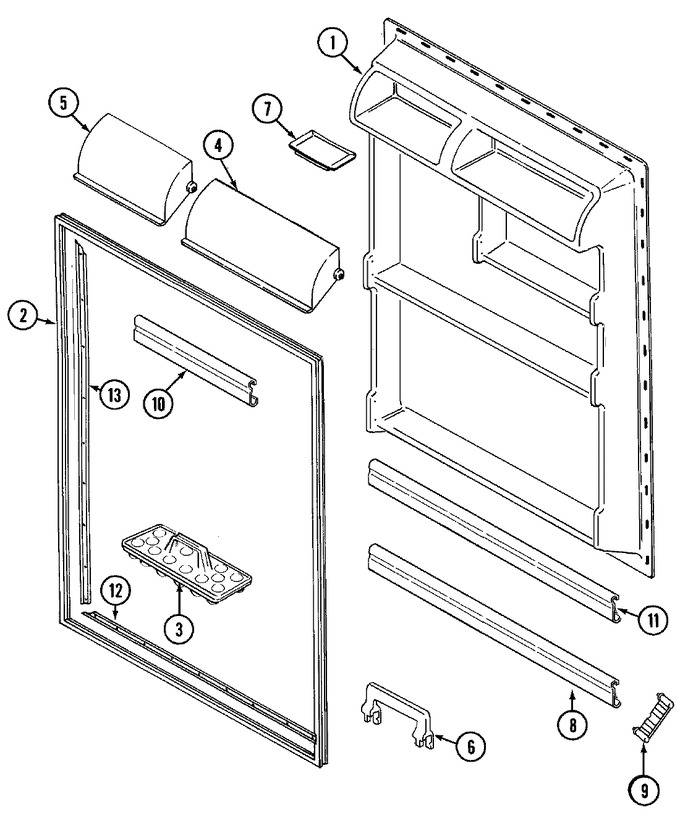

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	10	Appelez-nous	-
1	69453-1		Liner, F.f. Door	10	Appelez-nous	-
2	70025-6		Gasket, F.f. Door (wht)	10			$ 155.30
3	60066-1		Tray, Egg	10	Appelez-nous	-
4	69058-30		Door, Dairy (large)	10	Appelez-nous	-
5	69058-29		Door, Dairy	10	Appelez-nous	-
6	70112-1		Retainer, Bottle	10	Appelez-nous	-
7	29936-2		Tray, Butter	10	Appelez-nous	-
8	WP70111-108		Trim, Shelf (24 7/8``)   (Replaces: 70111-50)	10		Immediately	$ 104.35
9	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
10	WP70111-108		Trim, Shelf (14 3/16``)   (Replaces: 70111-38)	10		Immediately	$ 104.35
11	WP70111-108		Trim, Shelf (24 3/8``)   (Replaces: 70111-47)	10		Immediately	$ 104.35
12	69999-5		Retainer, Gasket (top/bottom)	10	Appelez-nous	-
13	69999-8		Retainer, F.f. Gasket (side)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
