01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

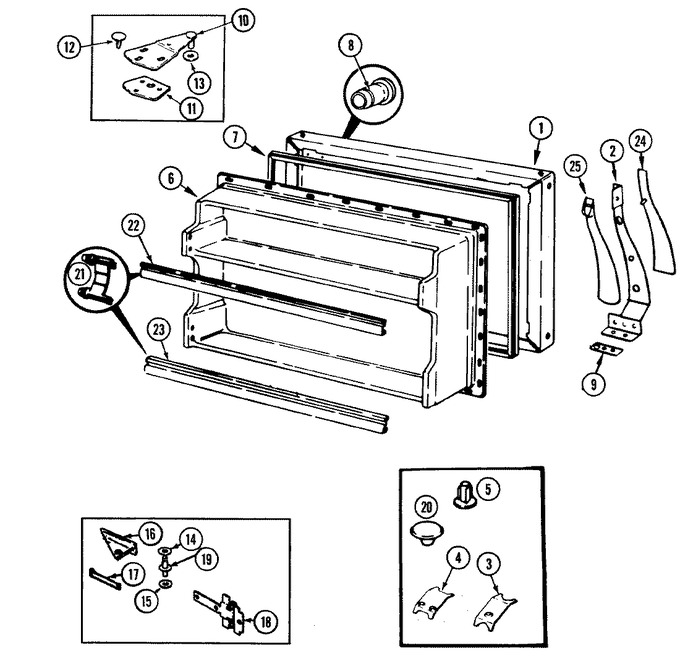

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-12-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	69300-1		Handle, Door		Appelez-nous	-
2	65275-57		Screw		Appelez-nous	-
3	69257-1		Clip, Handle		Appelez-nous	-
4	60123-2		Clip, Stop Screw		Appelez-nous	-
5	55782-6		Plug Button (almond)		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	69470-1		Liner, Frz. Door		Appelez-nous	-
7	70025-13		Gasket, Frz. Door		Appelez-nous	-
8	29356-1		Retainer, Nameplate		Appelez-nous	-
9	69835-1		Shim, Handle		Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
10	65003-1		Cover, Upper Hinge		Appelez-nous	-
10	53709-20		Hinge, Upper		Appelez-nous	-
11	65031-1		Shim, Upper Hinge		Appelez-nous	-
12	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
13	54233-1		Washer				$ 7.71
14	67483-6		Washer		Appelez-nous	-
15	54233-2		Washer		Appelez-nous	-
16	69514-2		Hinge, Center		Appelez-nous	-
16	65275-55		Screw		Appelez-nous	-
17	69515-1		Shim, Center Hinge		Appelez-nous	-
18	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
19	69517-1		Pin, Center Hinge		Appelez-nous	-
20	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)				$ 129.55
23	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
24	68959-2		Insert		Appelez-nous	-
25	65275-53		Screw		Appelez-nous	-
25	60445-4		Insert, Handle (back)		Appelez-nous	-
25	69256-2		Stop, Door		Appelez-nous	-
