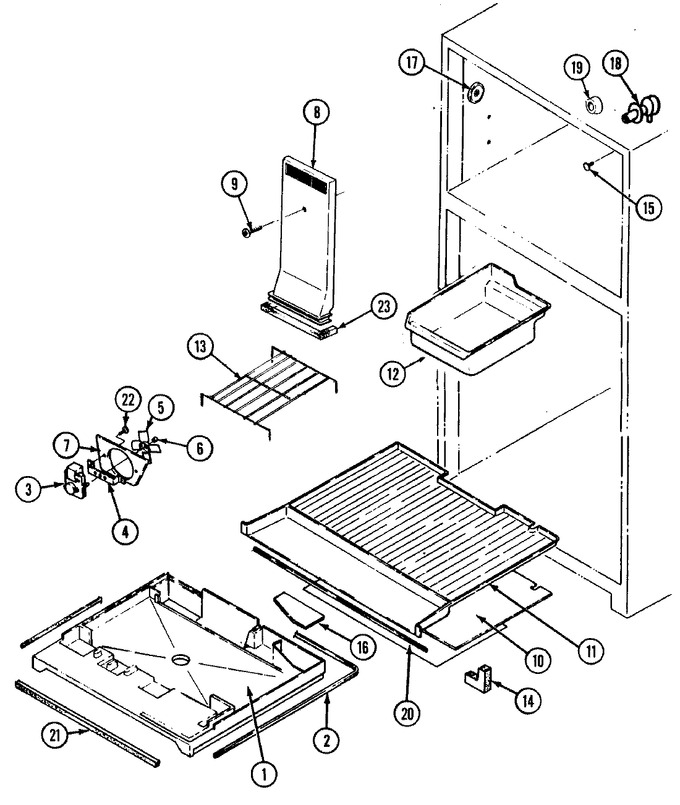

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69403-1		Tray, Styrofoam Mullion		Appelez-nous	-
2	69414-2		Seal, Mullion Tray		Appelez-nous	-
3	69106-2		Motor, Evaporator Fan				$ 95.45
3	406062-1		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	69107-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	69811-4		Orifice Assy., Damper		Appelez-nous	-
8	70208-3		Tunnel, Air		Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	69397-1		Bottom, Frz.		Appelez-nous	-
12	68327-1		Pan, Ice		Appelez-nous	-
13	68259-9		Trivet		Appelez-nous	-
14	66325-10		Seal, Frost Chest		Appelez-nous	-
15	70146-3		Plug Button (alm)		Appelez-nous	-
16	66480-5		Cover, Plenum		Appelez-nous	-
17	68187-1		Cap, Connector		Appelez-nous	-
18	68307-1		Grommet, Water Entry		Appelez-nous	-
19	68387-1		Cap, Grommet		Appelez-nous	-
20	69413-2		Magnet		Appelez-nous	-
21	69562-2		Seal, Mullion Tray (front)		Appelez-nous	-
22	400015-12		Screw		Appelez-nous	-
23	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
