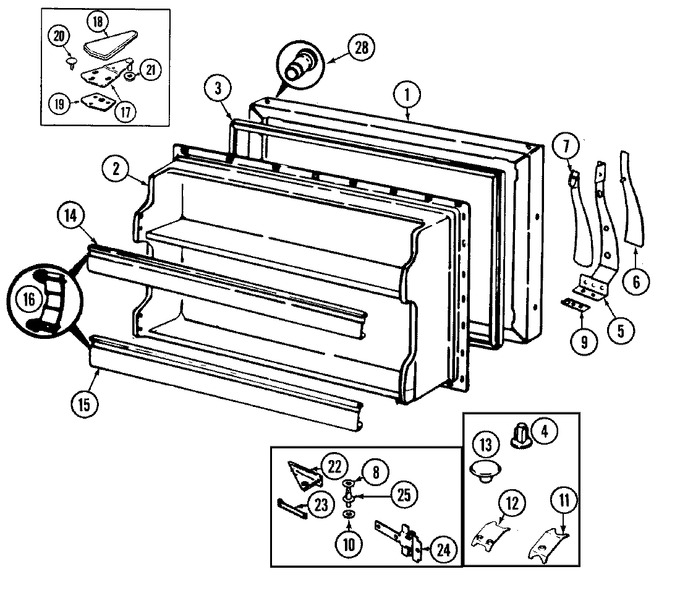

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-12-AM		Panel, Frz. Door (alm)	10	Appelez-nous	-
2	69470-1		Liner, Frz. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)	10			$ 142.50
4	55782-6		Plug Button (almond)	10	Appelez-nous	-
5	69300-1		Handle, Door	10	Appelez-nous	-
6	68959-2		Insert	10	Appelez-nous	-
7	60445-4		Insert, Handle (back)	10	Appelez-nous	-
8	67483-6		Washer	10	Appelez-nous	-
8	65275-53		Screw	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	54233-2		Washer	10	Appelez-nous	-
11	56209-3		Clip, Stop Screw	10	Appelez-nous	-
12	60123-2		Clip, Stop Screw	10	Appelez-nous	-
13	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)	10			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)	10			$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
17	53709-20		Hinge, Upper	10	Appelez-nous	-
18	70121-3		Cover, Upper Hinge (alm)	10	Appelez-nous	-
19	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
20	56144-9		Plug Button, Hinge Screw (alm)	10	Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
21	54233-1		Washer	10			$ 7.71
22	69514-2		Hinge, Center	10	Appelez-nous	-
23	69515-1		Shim, Center Hinge	10	Appelez-nous	-
24	65275-55		Screw	10	Appelez-nous	-
24	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
25	65275-48		Screw	10	Appelez-nous	-
25	69256-2		Stop, Door	10	Appelez-nous	-
25	69517-1		Pin, Center Hinge	10	Appelez-nous	-
26	29356-1		Retainer, Nameplate	10	Appelez-nous	-
