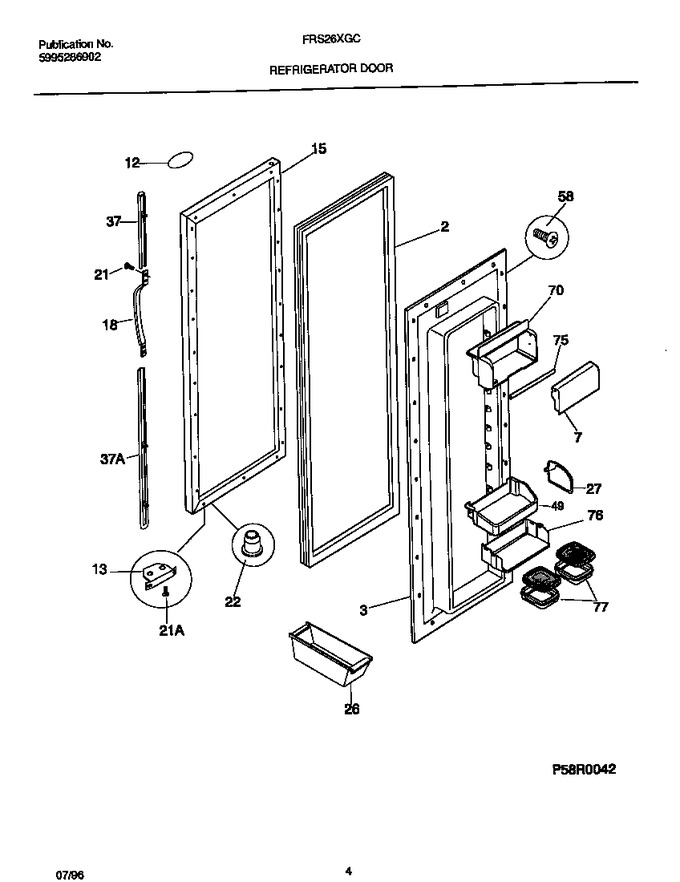

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215434301		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917488		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	218025201		Handle-door, White, Soft Grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
37	215867064		Trim-handle, White, Upper, W/dec Gold Band, And Snap Loc				$ 11.39
37	215867061		Trim-handle, White, Lower, W/dec Gold Band, And Snap Loc		Appelez-nous	-
49	218592303		Bin-door, ``mongo``		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
70	218383202		Housing-dairy Compt		Appelez-nous	-
75	218431100		Bumper-dairy Door		Appelez-nous	-
76	218423600		Rack-microwave Dish				$ 55.35
77	218423501		Dish-microwave, (2)				$ 4.59
*38525	215782300		Lock-handle Trim,snap-in				$ 34.49
*38526	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*38527	218676002		Band-decorative, Light Gold		Appelez-nous	-
*38528	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
