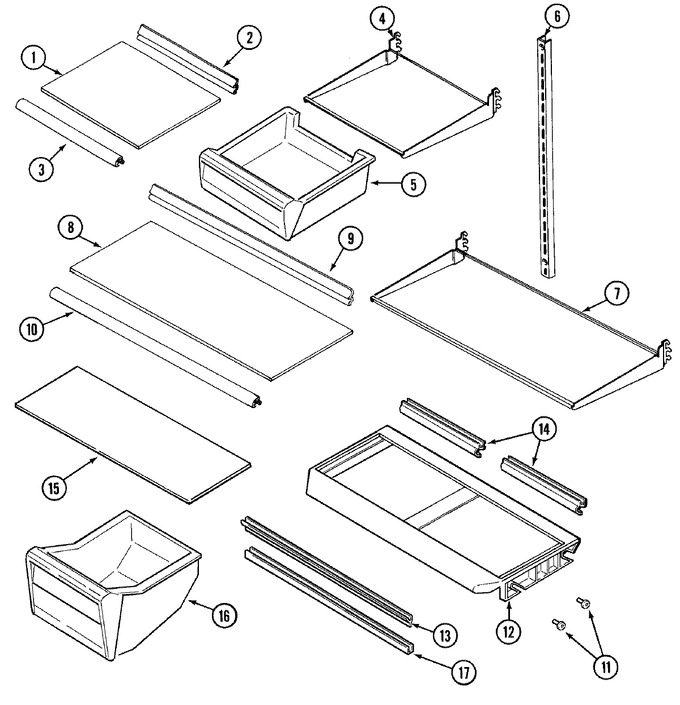

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002520		Glass, Split/meat Shelf	11	Appelez-nous	-
2	61002521		Trim, Meat/split Shelf (rear)	11	Appelez-nous	-
3	61002522		Trim, Meat/split Shelf (frt)	11	Appelez-nous	-
4	61002558		Frame, Split Shelf	11	Appelez-nous	-
4	61002523		Frame, Meat Shelf	11	Appelez-nous	-
5	61002525		Pan, Utility	11	Appelez-nous	-
6	WP67006908		Screw   (Replaces: 400022-1)	11		Immediately	$ 7.16
6	61002254		Rail, Shelf Support (lt/rt)	11	Appelez-nous	-
6	61002253		Rail, Cant. Shelf	11	Appelez-nous	-
6	400037-28		Screw	11	Appelez-nous	-
7	61002533		Frame, Full Shelf	11	Appelez-nous	-
8	61002526		Glass, Full Shelf	11	Appelez-nous	-
9	61002527		Trim, Full Shelf (rear)	11	Appelez-nous	-
10	61002528		Trim, Full Shelf (frt)	11	Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)	11			$ 6.98
11	67764-1		Support, Crisper Shelf	11			$ 8.05
12	61002529		Shelf, Crisper	11	Appelez-nous	-
13	61002530		Seal, Crisper Shelf (frt)	11	Appelez-nous	-
14	61002531		Seal, Crisper Shelf (rear)	11	Appelez-nous	-
15	61002532		Glass, Crisper Shelf	11			$ 85.72
16	61002534		Pan, Crisper	11	Appelez-nous	-
17	61002535		Support, Crisper Pan	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
